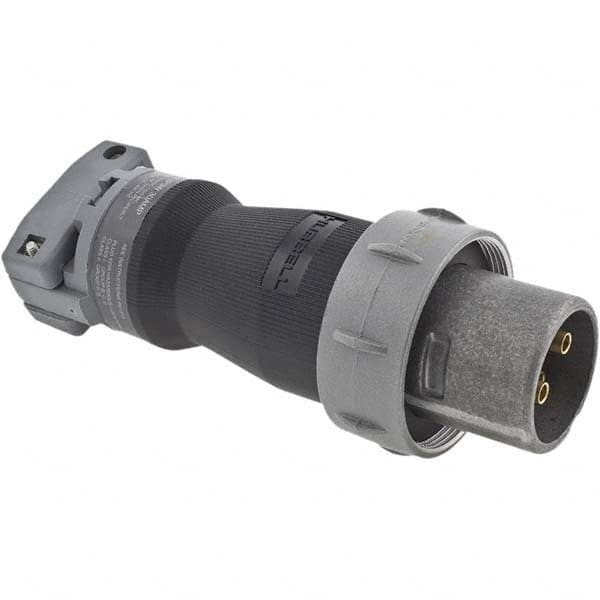

Hubbell Wiring Device-Kellems - Pin & Sleeve Plugs & Connectors Connector Type: Plug Pin Configuration: 2
Item #: 98653041
Brand: Hubbell Wiring Device-Kellems
Model #: HBL330PS2W
Product Specifications
Pin & Sleeve Plugs & Connectors; Connector Type: Plug ; Pin Configuration: 2 ; Number of Poles: 2 ; Amperage: 30 ; Voltage: 600 VAC/250 VDC ; Maximum Cord Grip Diameter (Decimal Inch): 1.2000
| Connector Type | Plug |
| Pin Configuration | 2 |
| Number of Poles | 2 |
| Amperage | 30 |
| Voltage | 600 VAC/250 VDC |
| Maximum Cord Grip Diameter (Decimal Inch) | 1.2000 |
| Grounding Style | Self-Grounding |
| Minimum Cord Grip Diameter (Decimal Inch) | 3/8 |
| Resistance Features | Watertight |
| Color | Gray; Black |
| Overall Length (Decimal Inch) | 7.5300 |
| Number of Phases | 1 |
| Ingress Protection Rating | UL Type 3, 4, 4X, While in US with Cover Closed |
| Material | Thermoplastic |
| Standards Met | UL 1686 C1; Type 4X; UL Listed; CSA Certified |
