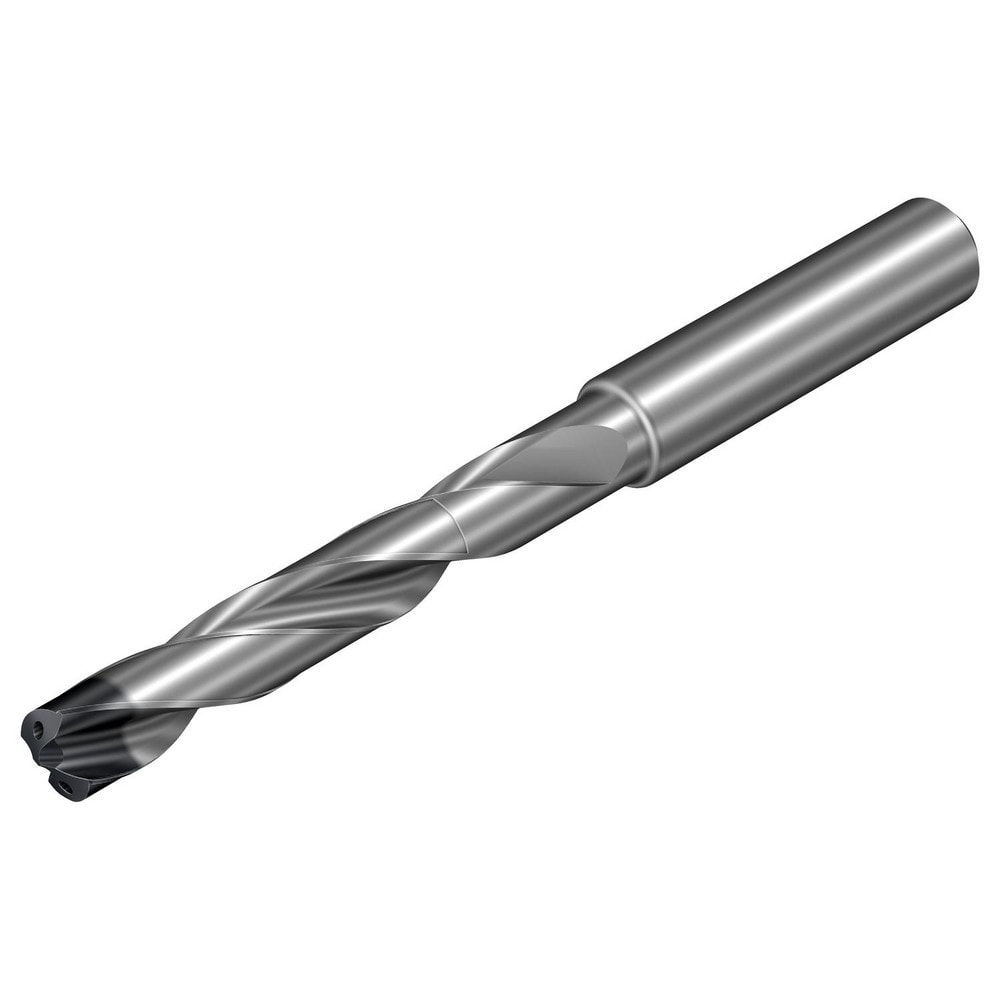

Jobber Drill: 10.30 mm Dia, 140 deg Point, Solid Carbide
Item #: 01163864
Brand: Sandvik Coromant
Model #: 8421119
Product Specifications
| Drill Bit Size (mm) | 10.30 |
| Drill Bit Size (Decimal Inch) | 0.4055 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlSiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | High-Temp Alloy |
| Specification Number | DIN 6535HA |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 118.00 |
| Overall Length (Decimal Inch) | 4.6457 |
| Flute Length (mm) | 71.00 |
| Flute Length (Decimal Inch) | 2.7953 |
| Series | CoroDrill 860 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 12 |
| Maximum Drilling Depth (Decimal Inch) | 2.1012 |
| Maximum Drilling Depth (mm) | 53.37 |
| Drill Point Length (mm) | 1.87 |
| Drill Point Length (Decimal Inch) | 0.0738 |
| Drill Bit Diameter Tolerance | h6 |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
