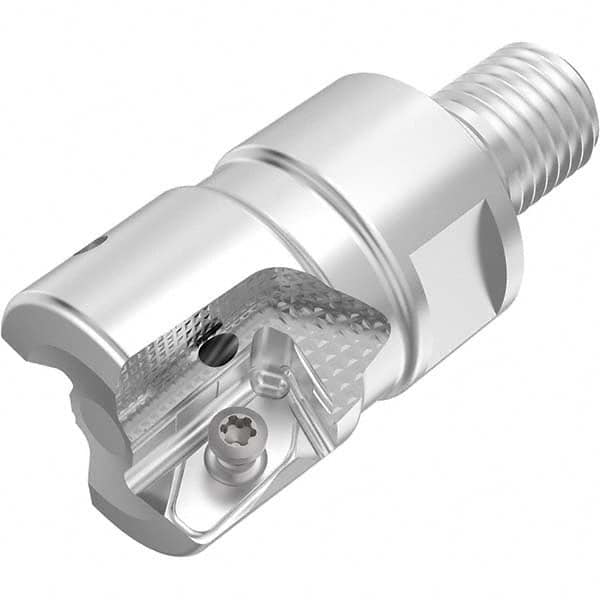

Seco - Indexable Square-Shoulder End Mills Cutting Diameter (Decimal Inch): 1.2500 Cutting Diameter (Inch): 1-1/4
Item #: 18992792
Brand: Seco
Model #: 03290235
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 1.2500 ; Cutting Diameter (Inch): 1-1/4 ; Shank Type: Combimaster ; Modular Connection Size: M16 ; Overall Length/Projection (mm): 45.00 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Combimaster |
| Modular Connection Size | M16 |
| Overall Length/Projection (mm) | 45.00 |
| Lead Angle | 90 |
| Series | R217.64 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.00 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Indexable Square Shoulder End Mill |
| Cutter Style | R217.64 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Inch) | 1-1/4 |
| Head Length (mm) | 45.00 |
| Weldon Flat | No |
| Insert Compatibility | ZOMX16 |
| Modular Connection Thread Size | M16 |
| Maximum RPM | 11400 |
| Toolholder Material | Steel |
