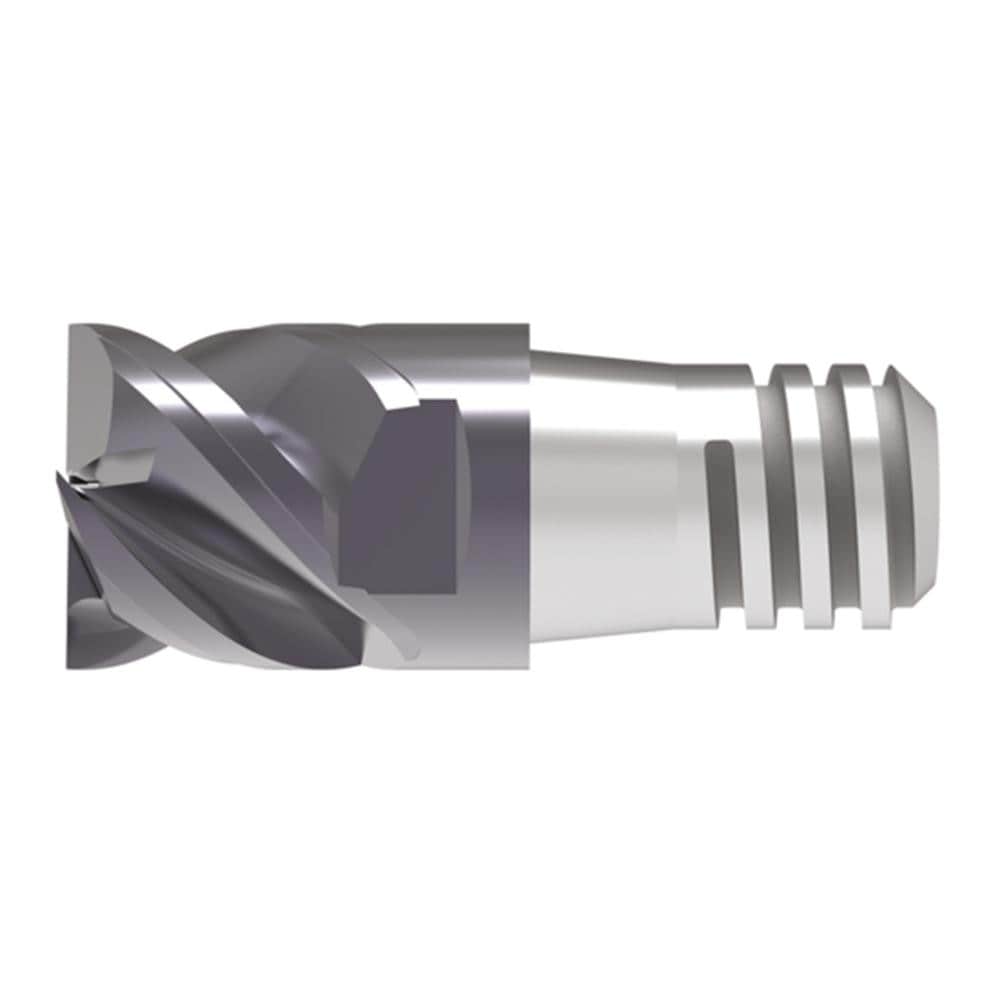

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 20.00; Length of Cut (mm): 15.0000; Number Of Flutes: 4
Item #: 06611495
Brand: WNT
Model #: 5287120000
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Length of Cut (mm) | 15.0000 |
| Number Of Flutes | 4 |
| Overall Length (mm) | 42.2000 |
| Corner Radius (mm) | 0.50 |
| Coating/Finish | APA72S |
| End Mill Material | Solid Carbide |
| Centercutting | No |
| Connection Type | SAM |
| Flute Type | Variable |
| Series | 52871 |
| Helix Angle | 36 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | No |
| Variable Helix | Yes |
| Variable Index | No |
| UNSPSC Code | 27112803 |
