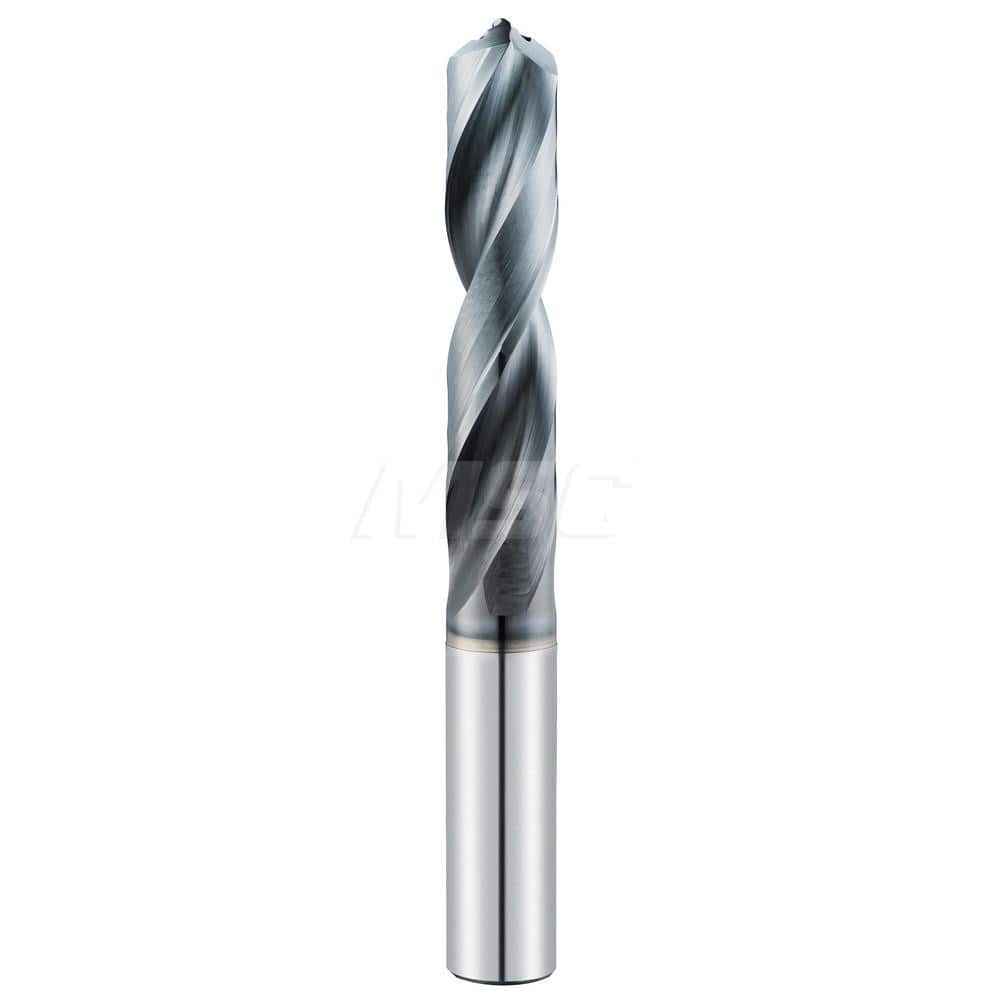

Screw Machine Length Drill Bit: 0.3543″ Dia, 135 °, Solid Carbide Ti-NAMITE-A Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 26153528
Brand: SGS
Model #: 69180
Product Specifications
| Drill Bit Size (mm) | 9.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Ti-NAMITE-A |
| Drill Point Angle | 135 |
| Spiral Type | Single |
| Flute Type | Spiral |
| Point Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3543 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Diameter (mm) | 10.00 |
| Drill Point Length (mm) | 47.00 |
| Drill Point Length (Decimal Inch) | 1.8504 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h6 |
| Material Grade | Micrograin |
