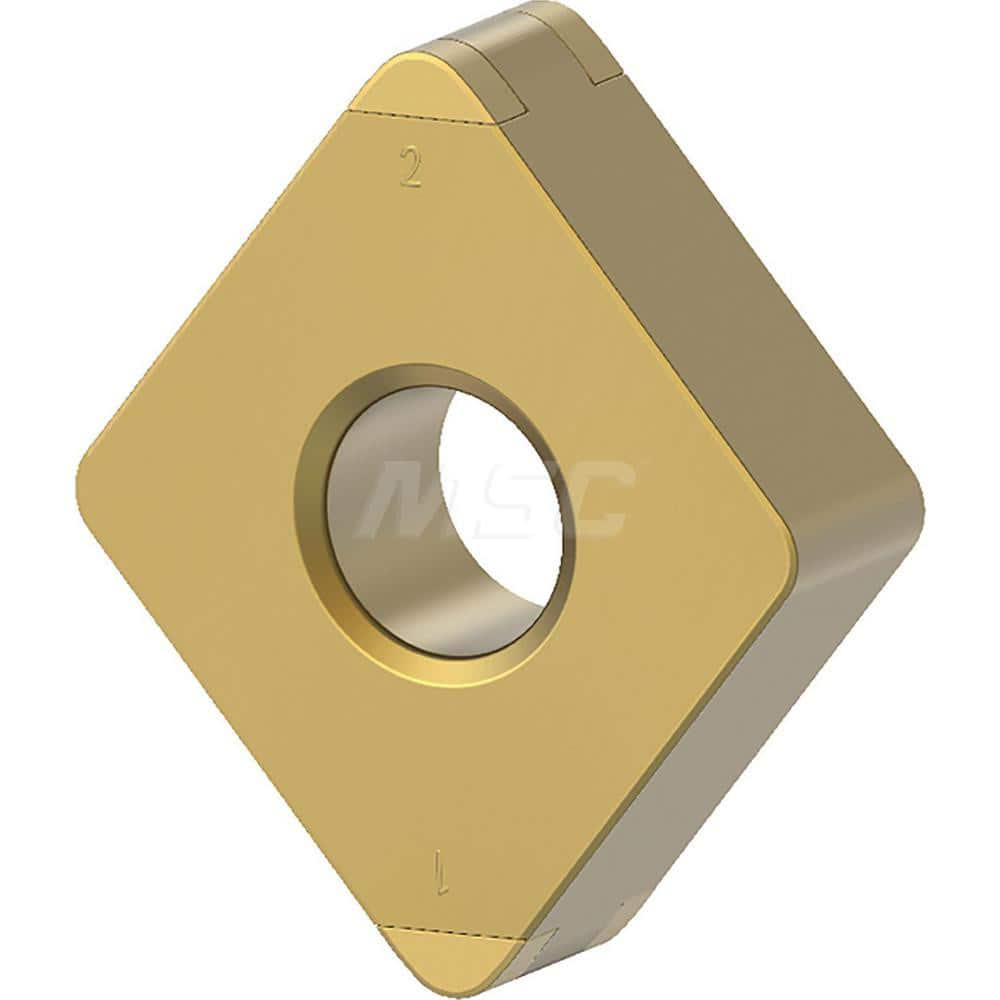

Turning Insert: CNGA431S0615GWDMT, Cubic Boron Nitride Uncoated Finish, Neutral, 0.5077″ Long, 1/2″ Inscribed Circle, N/A Diamond, Series PcBN
Item #: 26176289
Brand: Kennametal
Model #: 6813659
Product Specifications
| Insert Style | CNGA |
| Insert Shape Code | C |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBH10B |
| Inscribed Circle (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1883 |
| Corner Radius (Inch) | 1/64 |
| Series | PcBN |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Insert Length (Decimal Inch) | 0.5077 |
| Iso Code | CNGA120404S01515GWDMT |
| Manufacturers Catalog Number | CNGA431S0615GWDMT |
| Cutting Direction | Neutral |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
