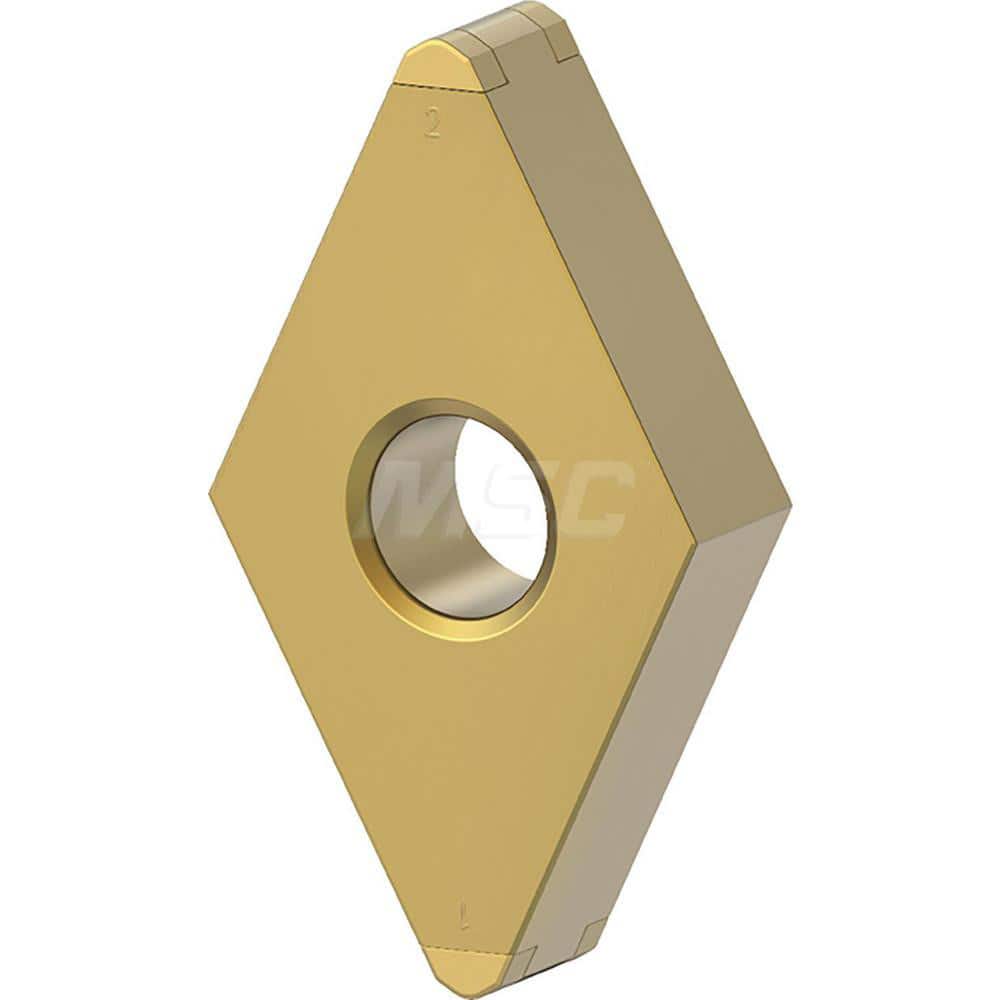

Turning Insert: DNGA442S0615GWDMT, Cubic Boron Nitride Uncoated Finish, Neutral, 0.6104″ Long, 1/2″ Inscribed Circle, N/A Diamond, Series PcBN
Item #: 26176685
Brand: Kennametal
Model #: 6813702
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 442 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBH20B |
| Inscribed Circle (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 1/32 |
| Series | PcBN |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (Decimal Inch) | 0.6104 |
| Iso Code | DNGA150608S01515GWDMT |
| Manufacturers Catalog Number | DNGA442S0615GWDMT |
| Cutting Direction | Neutral |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
