Milling Insert: SDHT 09T308ER-F10 CTCS245, CTCS245, Solid Carbide N/A Finish,
Item #: 26220657
Brand: Ceratizit
Model #: 5112555800

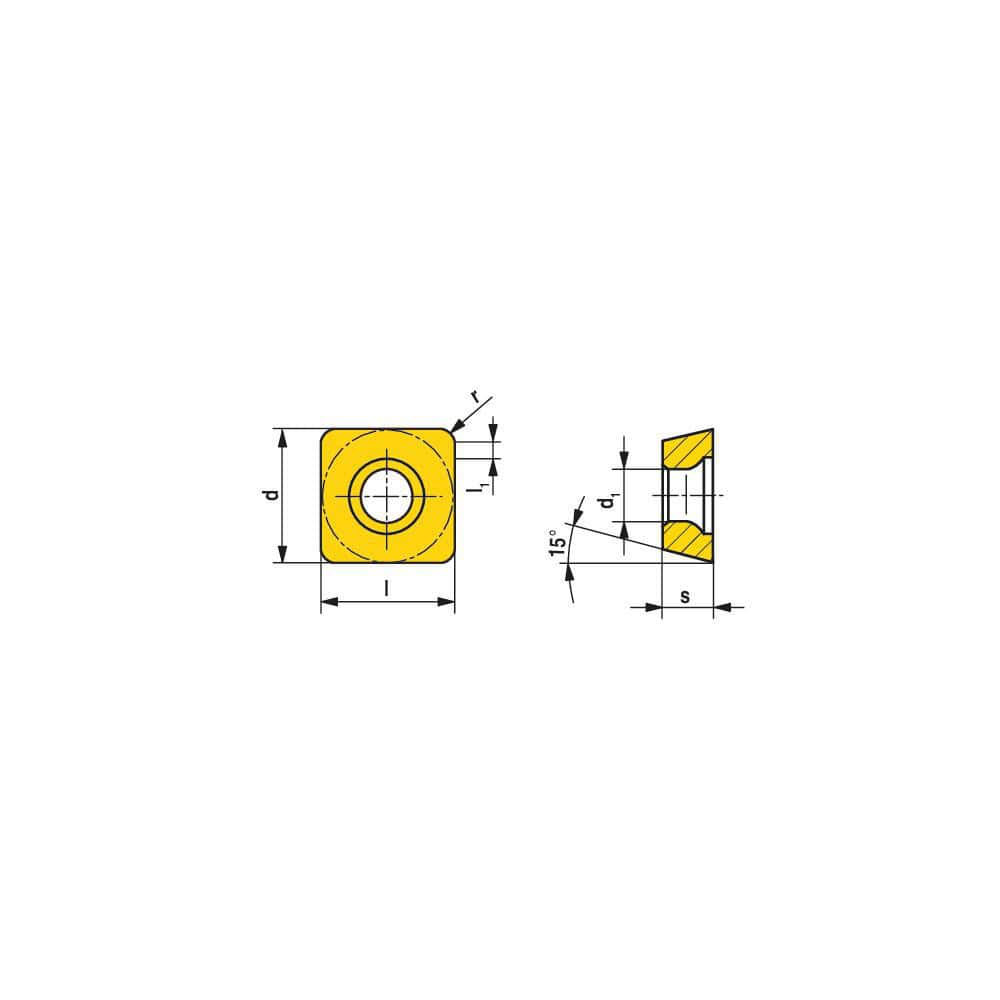

Product Specifications
| Insert Style | SDHT |
| Insert Size Code | 09T3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCS245 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | SDHT |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.1874 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3748 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Non-ISO |
| Primary Workpiece Material Code | S |
| Ansi Code | SDHT 09T308ER-F10 CTCS245 |
| Iso Code | SDHT 09T308ER-F10 CTCS245 |
| Chip Breaker | F10 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
