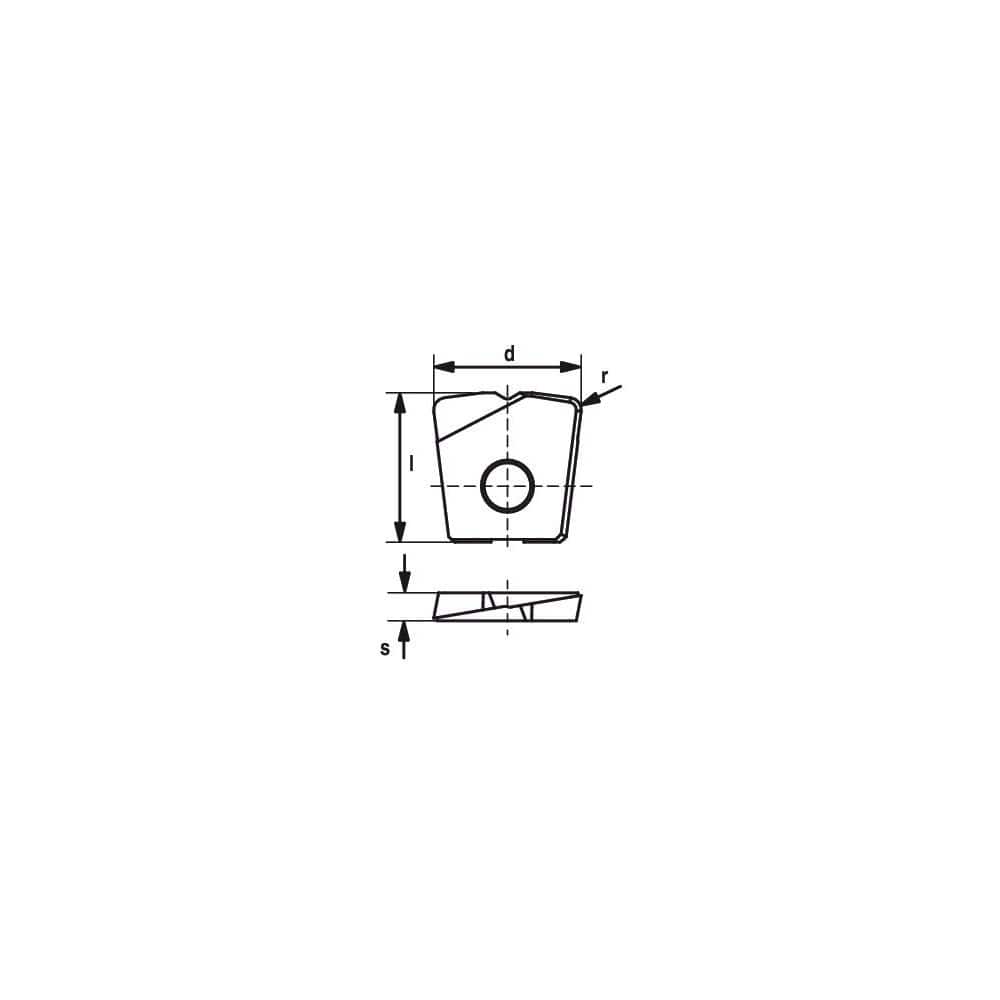

Milling Insert: XOHX 203020-MR3 CTPK231, CTPK231, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26221093
Brand: Ceratizit
Model #: 5617155500
Product Specifications
| Insert Style | XOHX |
| Insert Size Code | 2030 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTPK231 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Insert Hand | Neutral |
| Series | XOHX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.7087 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Non-Ferrous Metal; Hard Material; Super-Alloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Iso Code | XOHX 203020-MR3 CTPK231 |
| Chip Breaker | MR3 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1181 |
