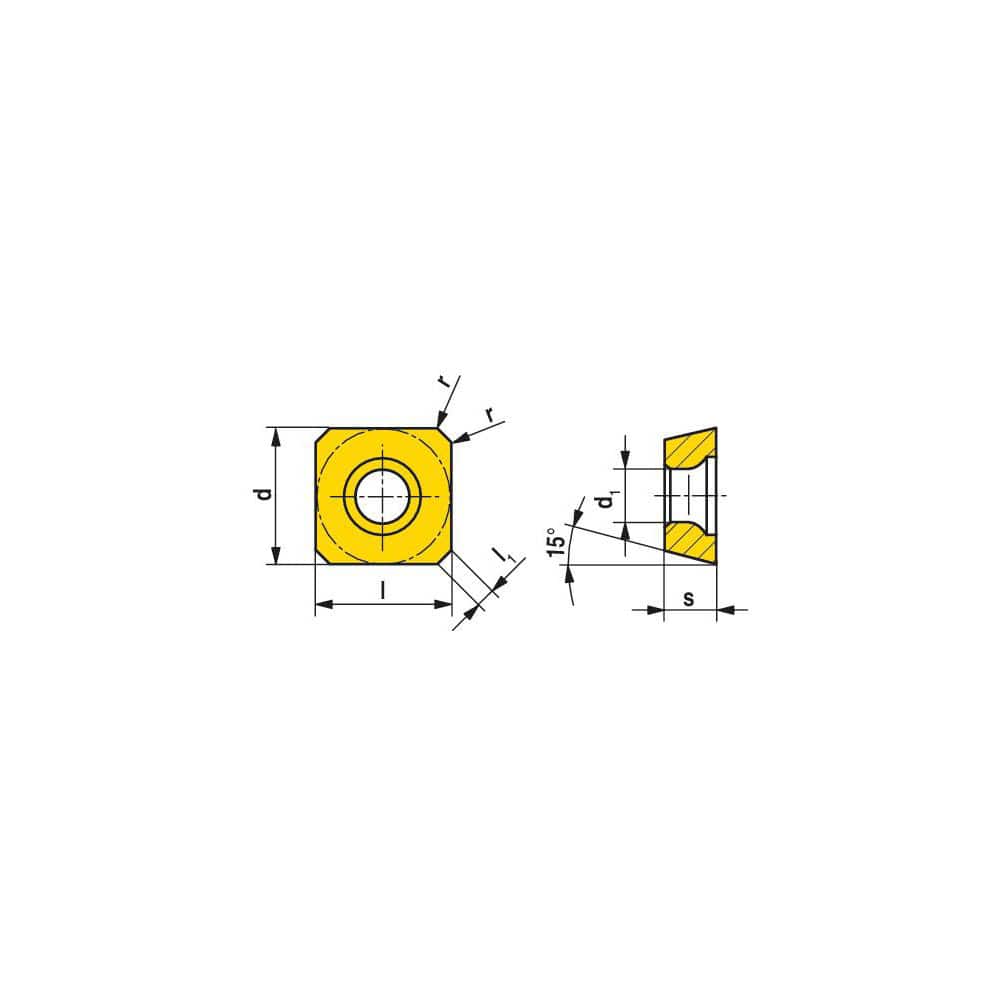

Milling Insert: SDHT 0903AESN-F50 CTPM245, CTPM245, Solid Carbide N/A Finish,
Item #: 26221770
Brand: Ceratizit
Model #: 51109470
Product Specifications
| Insert Style | SDHT |
| Insert Size Code | 0903 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPM245 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | SDHT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Maximum Depth of Cut (Decimal Inch) | 0.1874 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3748 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | SDHT 0903AESN-F50 CTPM245 |
| Iso Code | SDHT 0903AESN-F50 CTPM245 |
| Chip Breaker | F50 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
