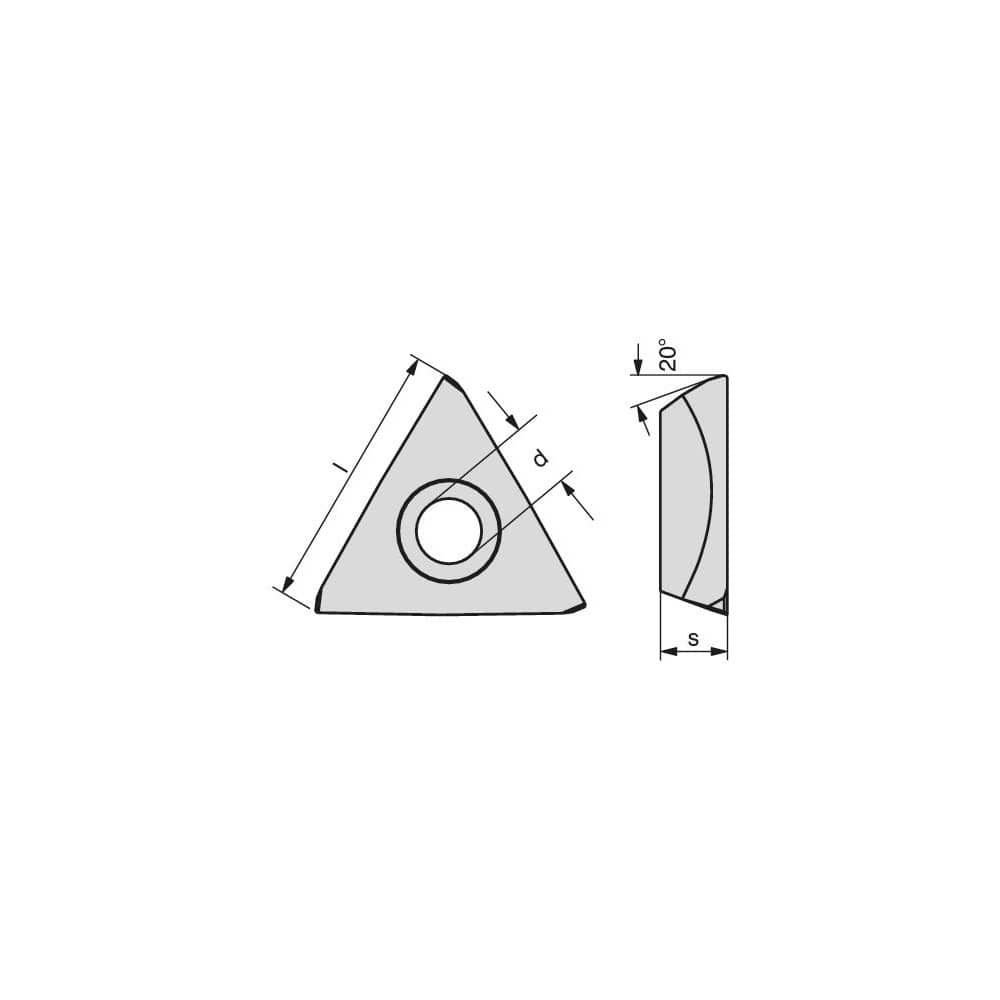

Milling Insert: TEHX 16T3ZF WTN1205, WTN1205, Solid Carbide N/A Finish,
Item #: 26221887
Brand: Ceratizit
Model #: 56327151
Product Specifications
| Insert Style | TEHX |
| Insert Size Code | 16T3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WTN1205 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Hand | Neutral |
| Relief Angle | 20.00 |
| Series | TEHX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1535 |
| Maximum Depth of Cut (Decimal Inch) | 0.3764 |
| Number Of Cutting Edges | 3 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5638 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | TEHX 16T3ZF WTN1205 |
| Chip Breaker | None |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1575 |
