Milling Insert: XDKT 200716ER-M50 CTPK220, CTPK220, Solid Carbide N/A Finish,
Item #: 26222034
Brand: Ceratizit
Model #: 5114561600

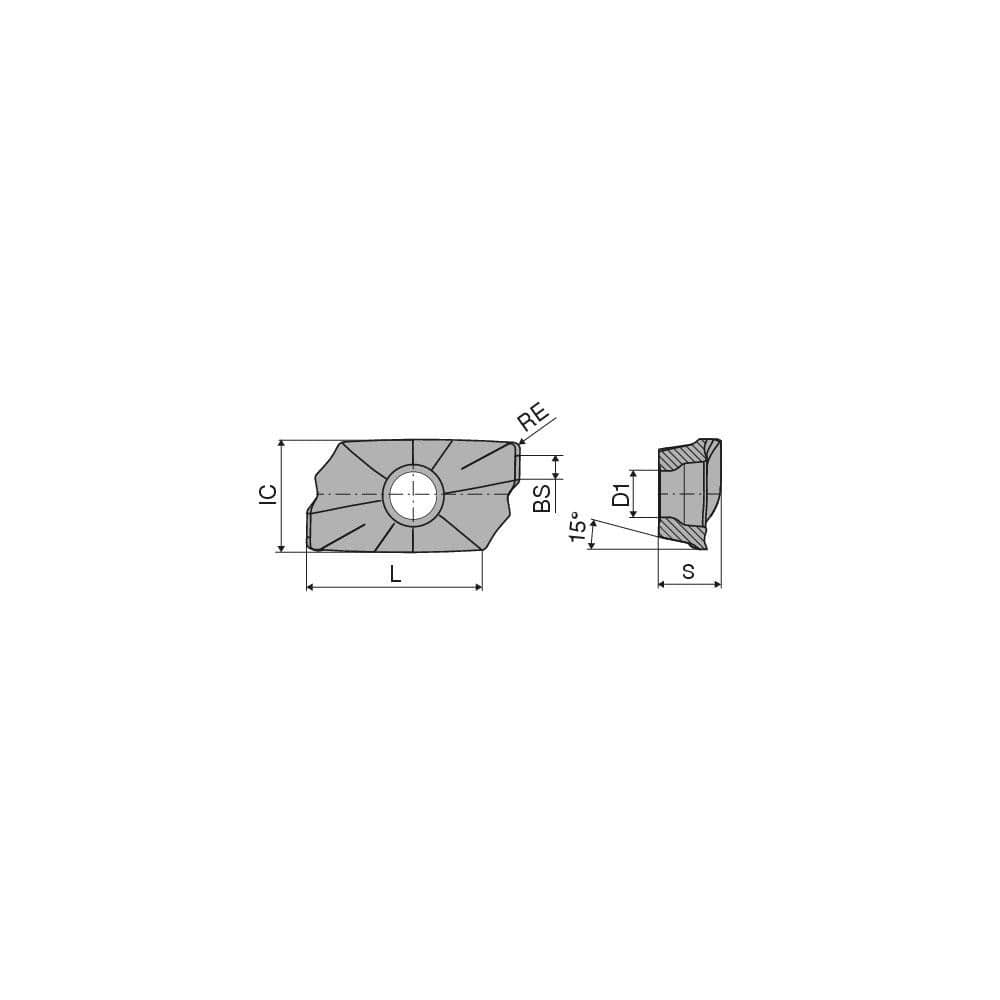

Product Specifications
| Insert Style | XDKT |
| Insert Size Code | 2007 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPK220 |
| Inscribed Circle (Decimal Inch) | 0.4921 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | XDKT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.4942 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.7402 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | XDKT 200716ER-M50 CTPK220 |
| Iso Code | XDKT 200716ER-M50 CTPK220 |
| Chip Breaker | M50 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2713 |
