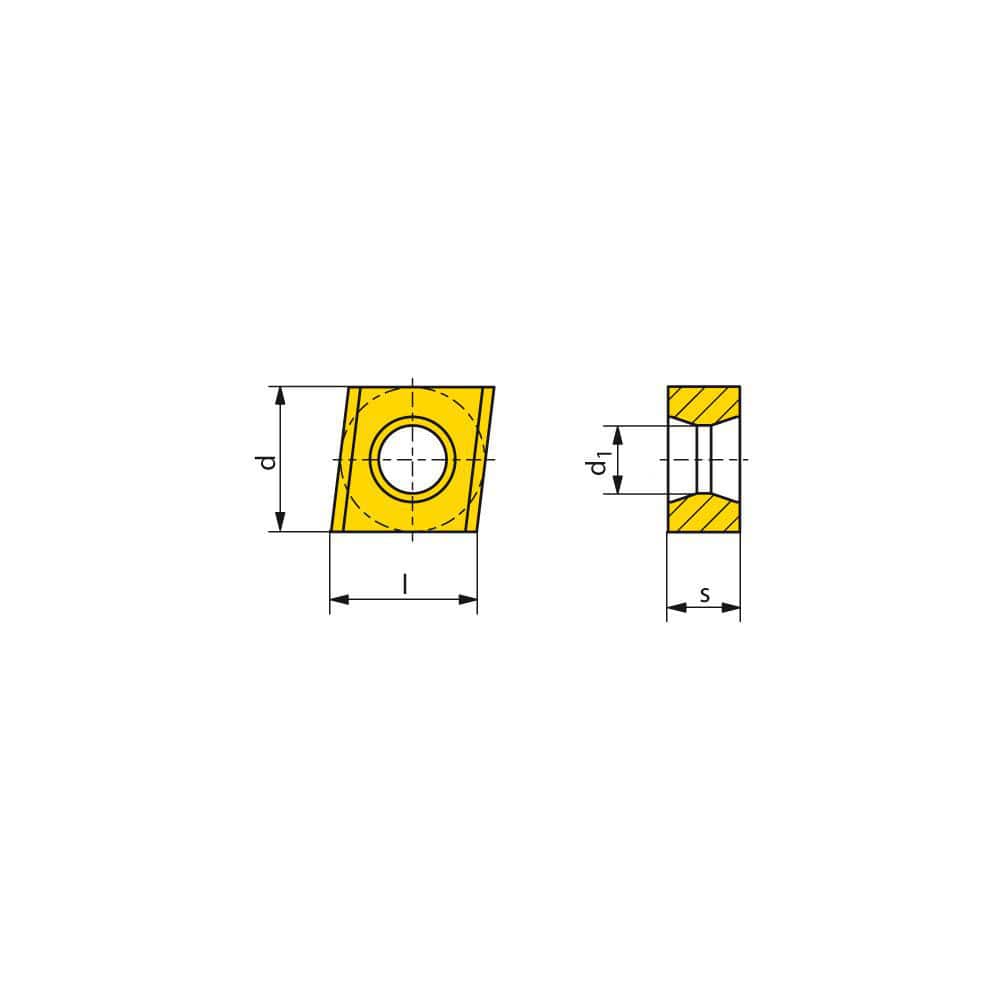

Milling Insert: CNHT 1205 CTPP235, CTPP235, Solid Carbide N/A Finish,
Item #: 26222166
Brand: Ceratizit
Model #: 51098102
Product Specifications
| Insert Style | CNHT |
| Insert Size Code | 1205 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPP235 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | CNHT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1850 |
| Maximum Depth of Cut (Decimal Inch) | 0.3111 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5079 |
| Insert Shape | Diamond |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | CNHT 1205 CTPP235 |
| Chip Breaker | None |
| Coating/Finish | Coated |
| Included Angle Degree | 80 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2126 |
