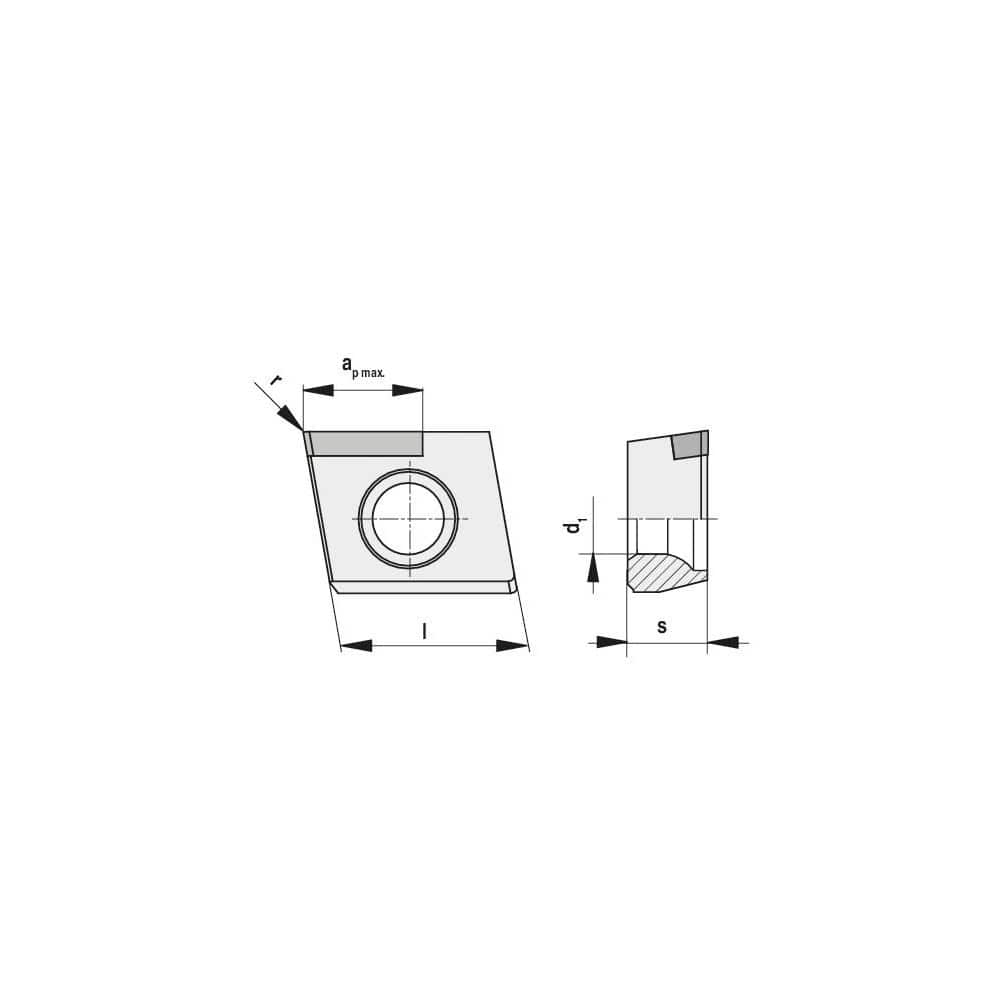

Milling Insert: ZNHW 04T3POER-1204 CTD4205, CTD4205, Polycrystalline Diamond N/A Finish,
Item #: 26222299
Brand: Ceratizit
Model #: 5113777000
Product Specifications
| Insert Style | ZNHW |
| Insert Size Code | 04T3 |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | CTD4205 |
| Inscribed Circle (Decimal Inch) | 0.2756 |
| Insert Hand | Right Hand |
| Relief Angle | 0.00 |
| Series | ZNHW |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.1574 |
| Number Of Cutting Edges | 1 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4331 |
| Insert Shape | Diamond |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Non-ISO |
| Secondary Workpiece Material Code | O |
| Iso Code | ZNHW 04T3POER-1204 CTD4205 |
| Chip Breaker | None |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
