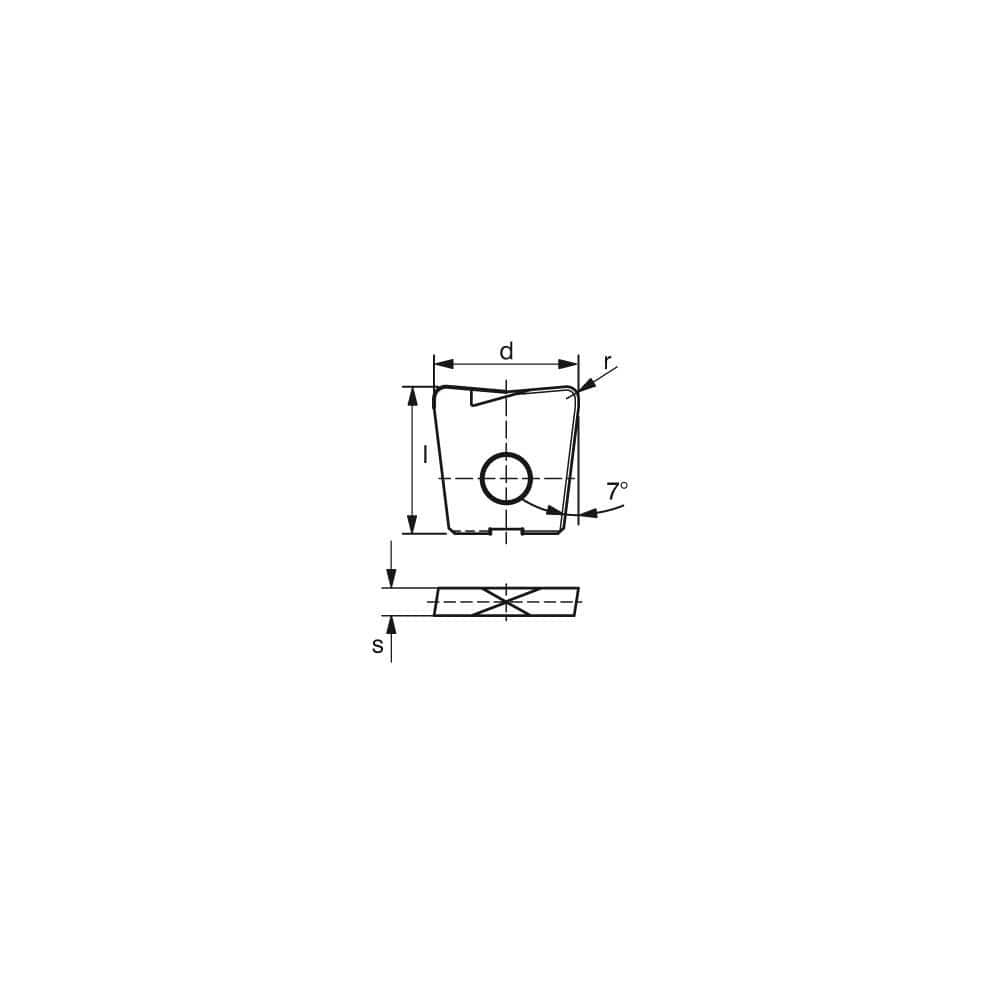

Milling Insert: XOHX 163010-MR2 CTCN211, CTCN211, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 26222372
Brand: Ceratizit
Model #: 56168642
Product Specifications
| Insert Style | XOHX |
| Insert Size Code | 1630 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTCN211 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Series | XOHX |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.6299 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Non-ISO |
| Primary Workpiece Material Code | O |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Iso Code | XOHX 163010-MR2 CTCN211 |
| Chip Breaker | MR2 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1181 |
