Milling Insert: RNGN 120700TN-010D CTIS710, CTIS710, Ceramic N/A Finish, 1.0000″ OAW
Item #: 26222406
Brand: Ceratizit
Model #: 5114202600
Product Specifications
| Insert Style | RNGN |
| Insert Size Code | 45 |
| Insert Material | Ceramic |
| Width (Inch) | 1 |
| Manufacturer Grade | CTIS710 |

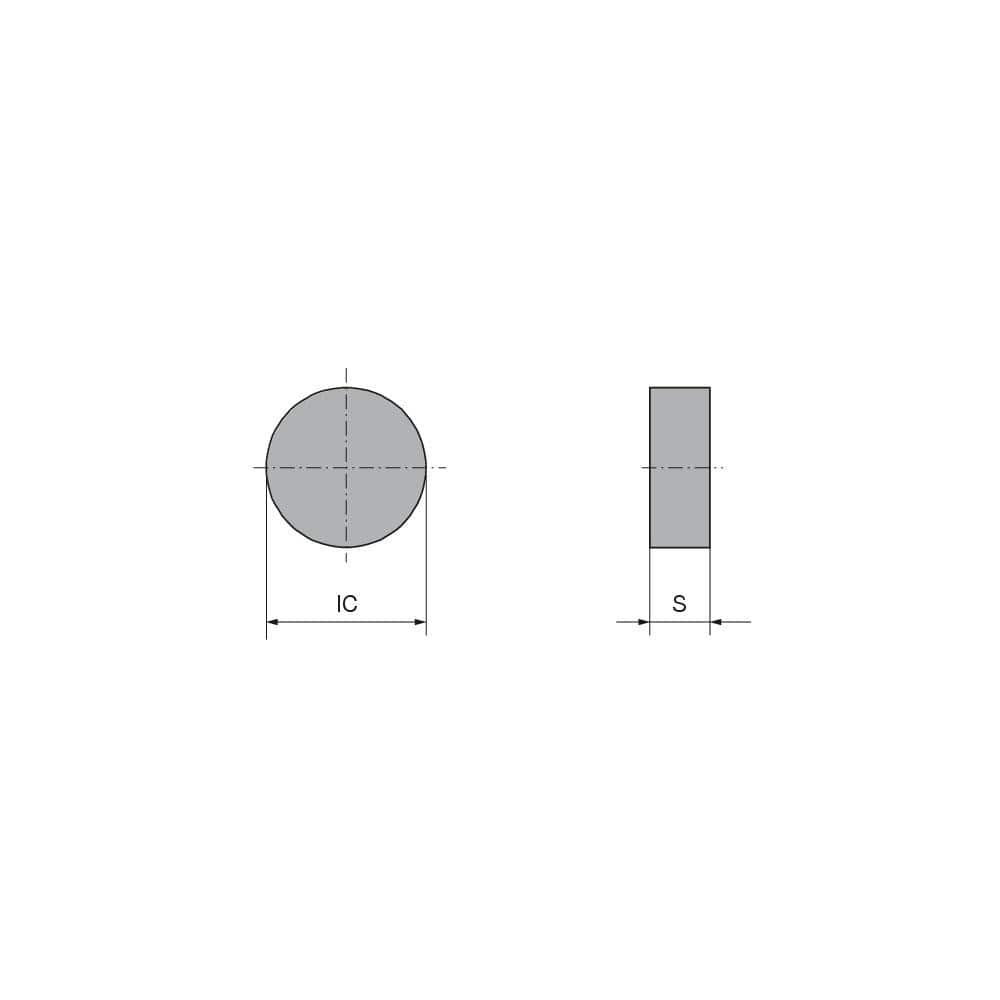

| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/4 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | RNGN |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2500 |
| Insert Shape | Round |
| Rake | Negative |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | RNGN 120700TN-010D CTIS710 |
| Iso Code | RNGN 120700TN-010D CTIS710 |
| Chip Breaker | None |
| Coating/Finish | Uncoated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3126 |
