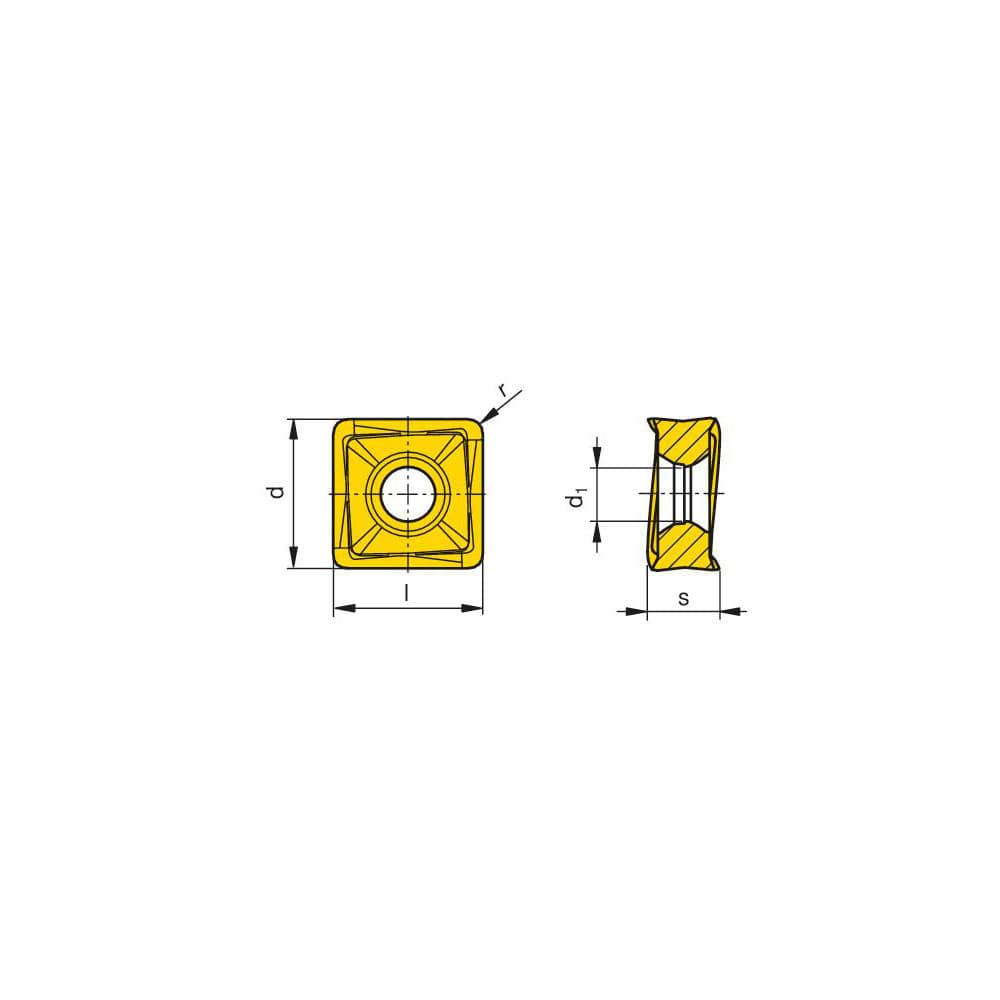

Milling Insert: SNHU 120408ER-F40 CTCM245, CTCM245, Solid Carbide N/A Finish,
Item #: 26222513
Brand: Ceratizit
Model #: 5112890801
Product Specifications
| Insert Style | SNHU |
| Insert Size Code | 1204 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCM245 |
| Inscribed Circle (Decimal Inch) | 0.4803 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Relief Angle | 6.50 |
| Series | SNHU |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.2402 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4803 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Super-Alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | SNHU 120408ER-F40 CTCM245 |
| Iso Code | SNHU 120408ER-F40 CTCM245 |
| Chip Breaker | F40 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
