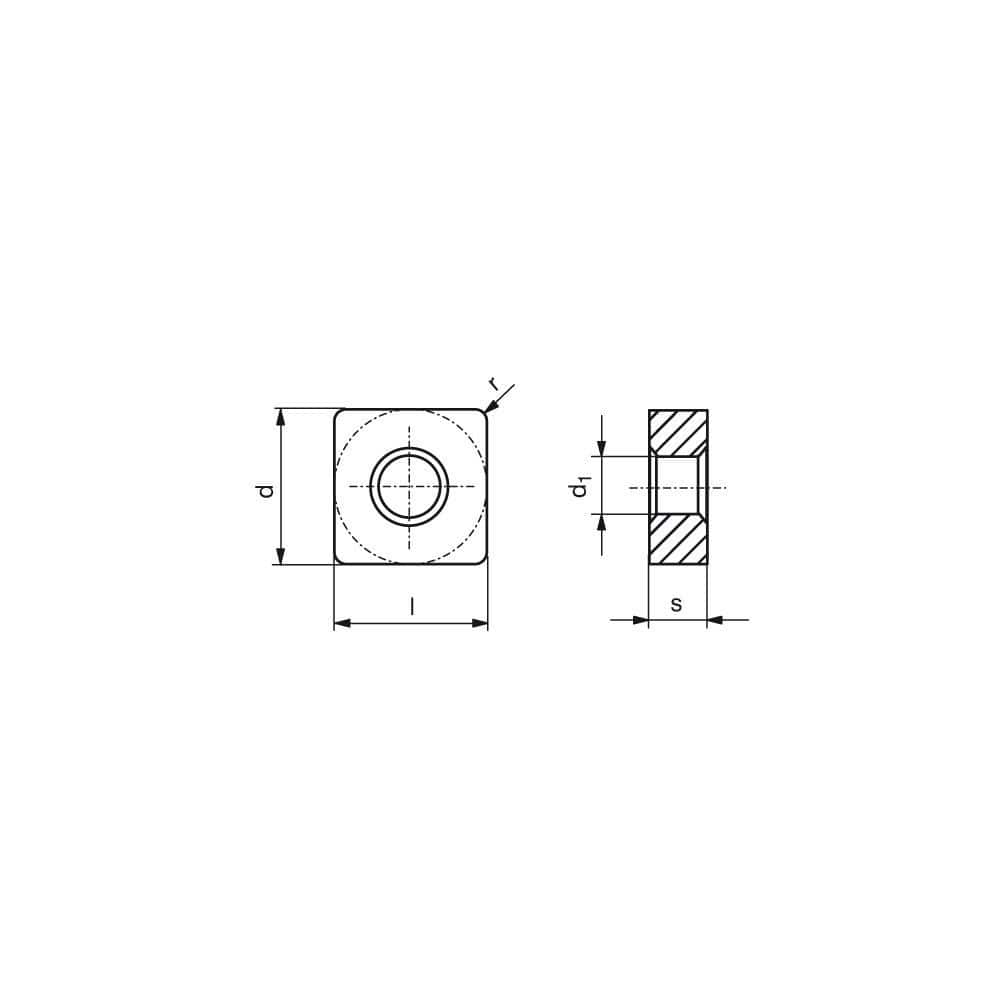

Turning Insert: SNMM866EN-R58 CTCP125, Solid Carbide TiCN & Al2O3 Finish, Neutral, 1″ Inscribed Circle, 0.0945″ Corner Radius, 90.0 ° N/A Square, Series SNMM
Item #: 26227348
Brand: Ceratizit
Model #: 76129570
Product Specifications
| Insert Style | SNMM |
| Insert Shape Code | S |
| Insert Size Code | 866 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPM125 |
| Hole Diameter (Decimal Inch) | 0.3591 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | SNMM |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | SNMM866ENR58CTCP125 |
| Iso Code | SNMM 250924EN-R58 CTCP125 |
| Chip Breaker | R58 |
| Coating/Finish | TiCN; Al2O3 |
