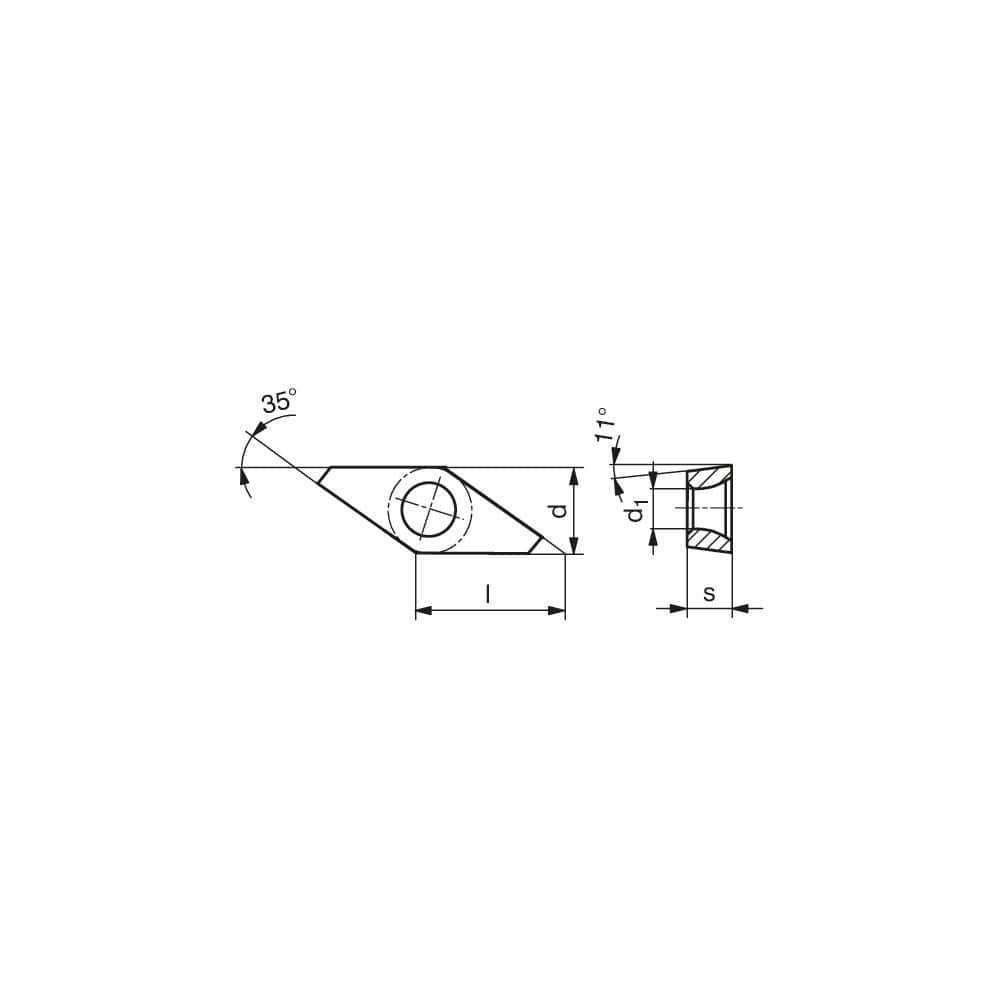

Turning Insert: VPET1003008FR WUU7610, Solid Carbide Uncoated Finish, Right Hand, 1/4″ Inscribed Circle, 0.0031″ Corner Radius, 35.0 ° N/A Diamond, Series VPET
Item #: 26232686
Brand: Ceratizit
Model #: 72402028
Product Specifications
| Insert Style | VPET |
| Insert Shape Code | V |
| Insert Size Code | 1003008 |
| Insert Shape | Diamond |
| Clearance Code | P |
| Tolerance Code | E |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WUU7610 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0031 |
| Included Angle | 35.0 |
| Relief Angle | 11 |
| Series | VPET |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Metal; Universal |
| Primary Workpiece Material Code | N; O |
| Secondary Workpiece Material | Super-alloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S |
| Ansi Code | VPET1003008FRWUU7610 |
| Iso Code | VPET 1003008FR WUU7610 |
| Chip Breaker | FR |
| Coating/Finish | Uncoated |
