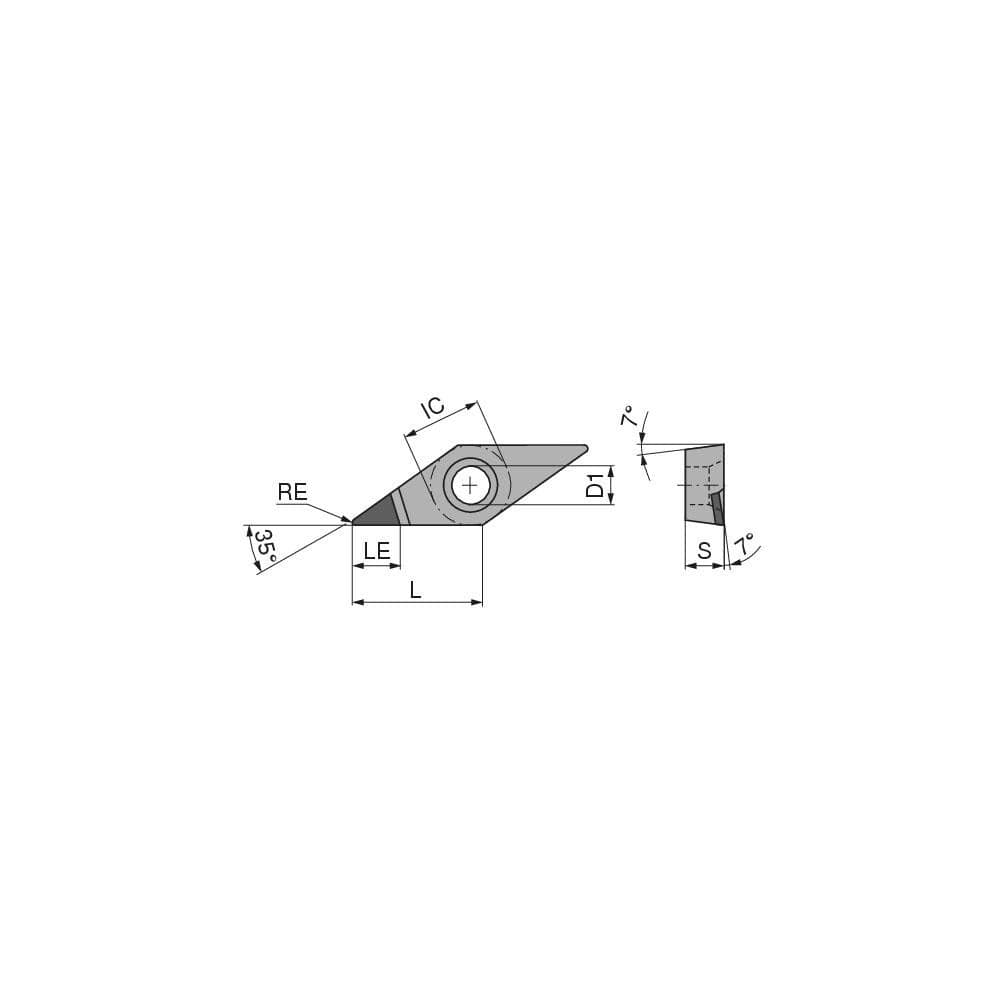

Turning Insert: VCGT2205FNA3CB2, Polycrystalline Diamond Diamond Coating Finish, Neutral, 1/4″ Inscribed Circle, 0.0079″ Corner Radius, 35.0 ° N/A Diamond, Series VCGT
Item #: 26236331
Brand: Ceratizit
Model #: 71331312
Product Specifications
| Insert Style | VCGT |
| Insert Shape Code | V |
| Insert Size Code | 220.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | CTDCD10 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Maximum Depth of Cut (Decimal Inch) | 0.4370 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | VCGT |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal; Universal |
| Primary Workpiece Material Code | N; O |
| Ansi Code | VCGT220.5FN_A3CB2CTDCD10 |
| Iso Code | VCGT 110302FN_A3-CB2 CTDCD10 |
| Chip Breaker | CB2 |
| Coating/Finish | Diamond Coating |
