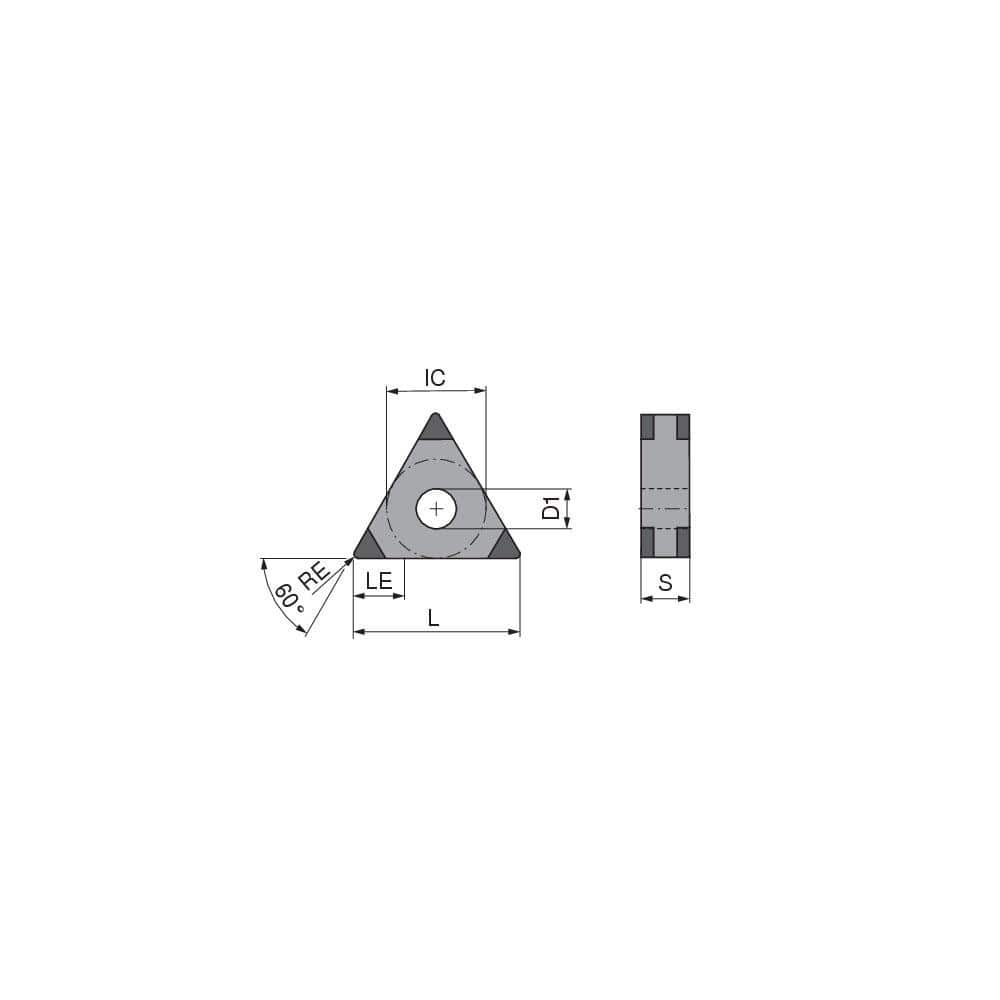

Turning Insert: TNGA333SN011DM2, Polycrystalline Cubic Boron Nitride TiN Finish, Neutral, 0.0472″ Corner Radius, 60.0 ° N/A Triangle, Series TNGA
Item #: 26238006
Brand: Ceratizit
Model #: 71404346
Product Specifications
| Insert Style | TNGA |
| Insert Shape Code | T |
| Insert Size Code | 333 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH40C |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNGA |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | TNGA333SN011D_M2CTBH40C |
| Iso Code | TNGA 160412SN-011D_M2 CTBH40C |
| Chip Breaker | A |
| Coating/Finish | TiN |
