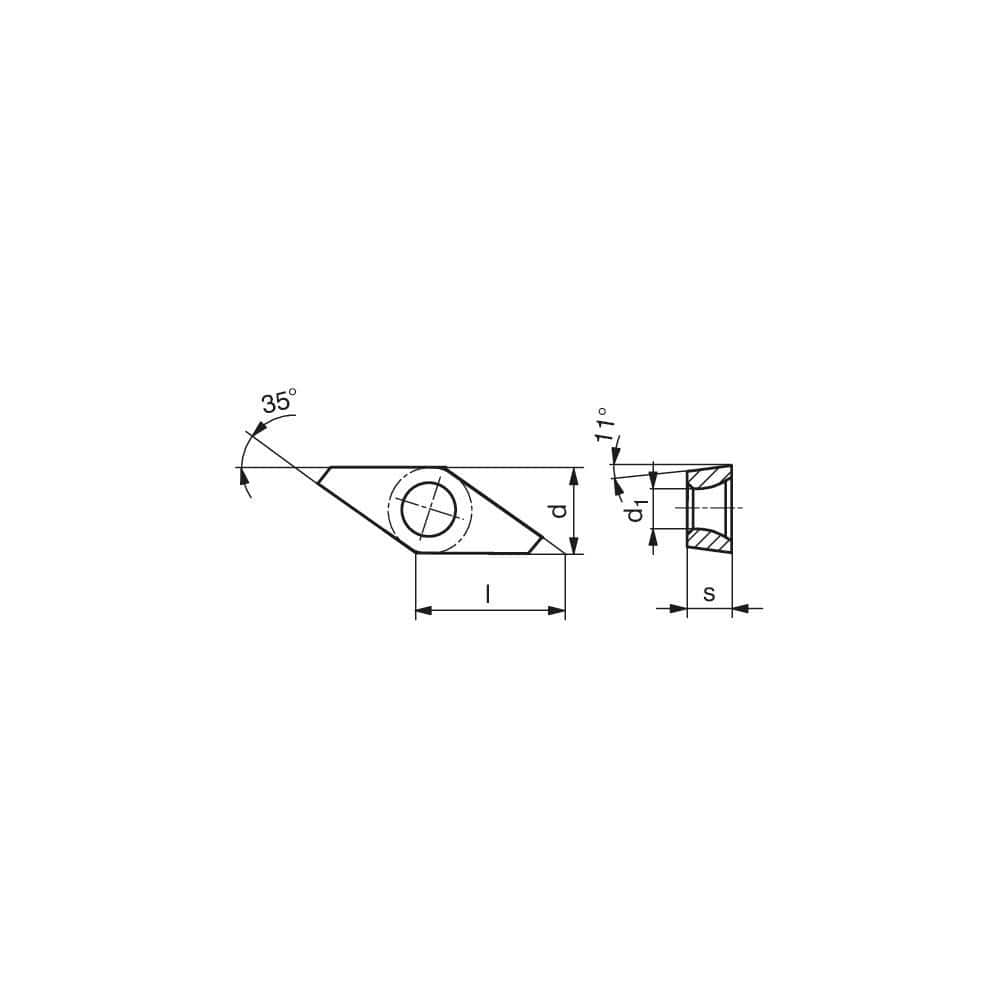

Turning Insert: VPET1003FL WPU7610, Solid Carbide AlTiN Finish, Left Hand, 1/4″ Inscribed Circle, 35.0 ° N/A Diamond, Series VPET
Item #: 26241489
Brand: Ceratizit
Model #: 72403760
Product Specifications
| Insert Style | VPET |
| Insert Shape Code | V |
| Insert Size Code | 1003 |
| Insert Shape | Diamond |
| Clearance Code | P |
| Tolerance Code | E |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WPU7610 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Included Angle | 35.0 |
| Relief Angle | 11 |
| Series | VPET |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Non-Ferrous Metal; Universal; Cast Iron; Super-alloys & Titanium |
| Secondary Workpiece Material Code | S; K; N |
| Ansi Code | VPET1003FLWPU7610 |
| Iso Code | VPET 1003FL WPU7610 |
| Chip Breaker | FL |
| Coating/Finish | AlTiN |
