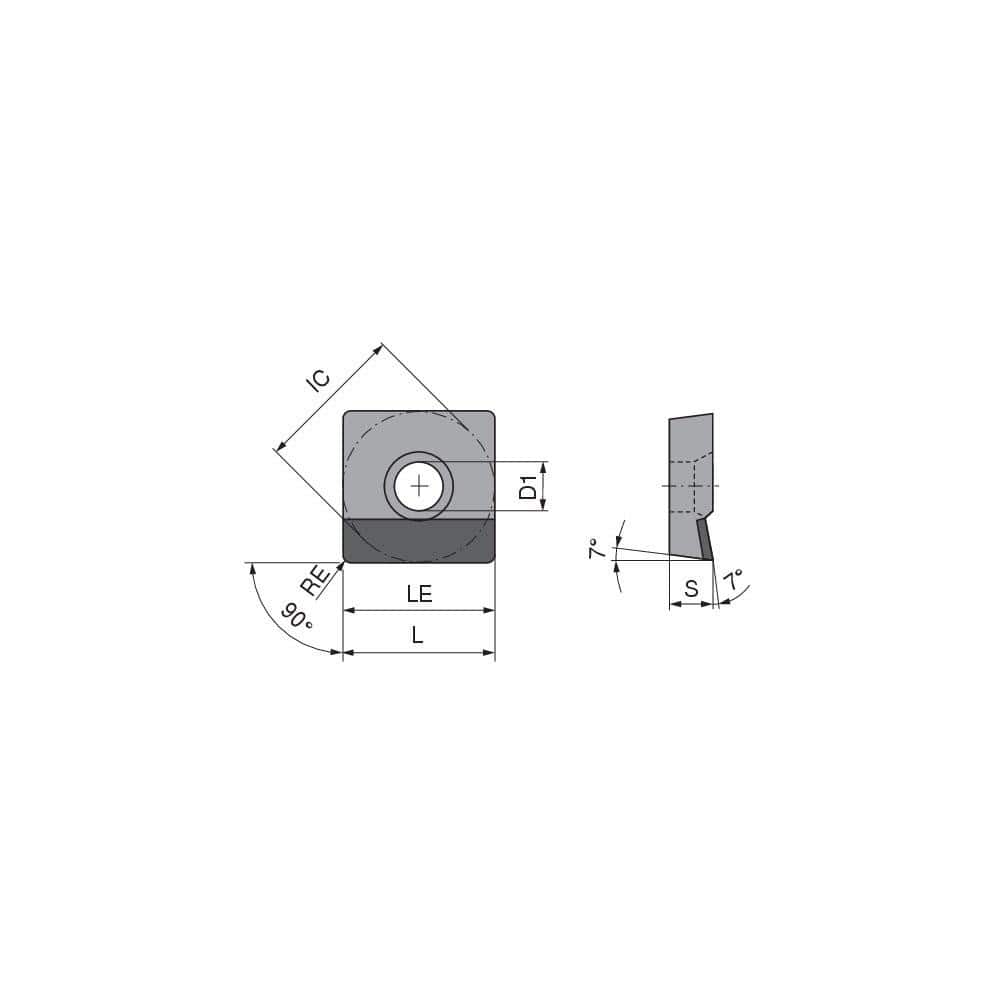

Turning Insert: SCGT3252FNA4CB3, Polycrystalline Diamond Uncoated Finish, Neutral, 0.0315″ Corner Radius, 90.0 ° N/A Square, Series SCGT

Item #: 26244889
Brand: Ceratizit
Model #: 71322218

Product Specifications

Insert Style SCGT

Insert Shape Code S

Insert Size Code 32.52

Insert Shape Square

Clearance Code C

Tolerance Code G

Insert Material Polycrystalline Diamond

Manufacturer Grade CTDPU20

Hole Diameter (Decimal Inch) 0.1732

Maximum Depth of Cut (Decimal Inch) 0.3748

Inscribed Circle (Decimal Inch) 0.3748

Insert Holding Method Screw

Insert Hand Neutral

Insert Thickness (Decimal Inch) 0.1563

Corner Radius (Decimal Inch) 0.0315

Included Angle 90.0

Relief Angle 7

Series SCGT

Coating Process Uncoated

Rake Positive

Wiper Edge No

Number Of Cutting Edges 1

Primary Workpiece Material Non-Ferrous Metal; Universal

Primary Workpiece Material Code N; O

Ansi Code SCGT32.52FN_A4CB3CTDPU20

Iso Code SCGT 09T308FN_A4-CB3 CTDPU20

Chip Breaker CB3

Coating/Finish Uncoated
