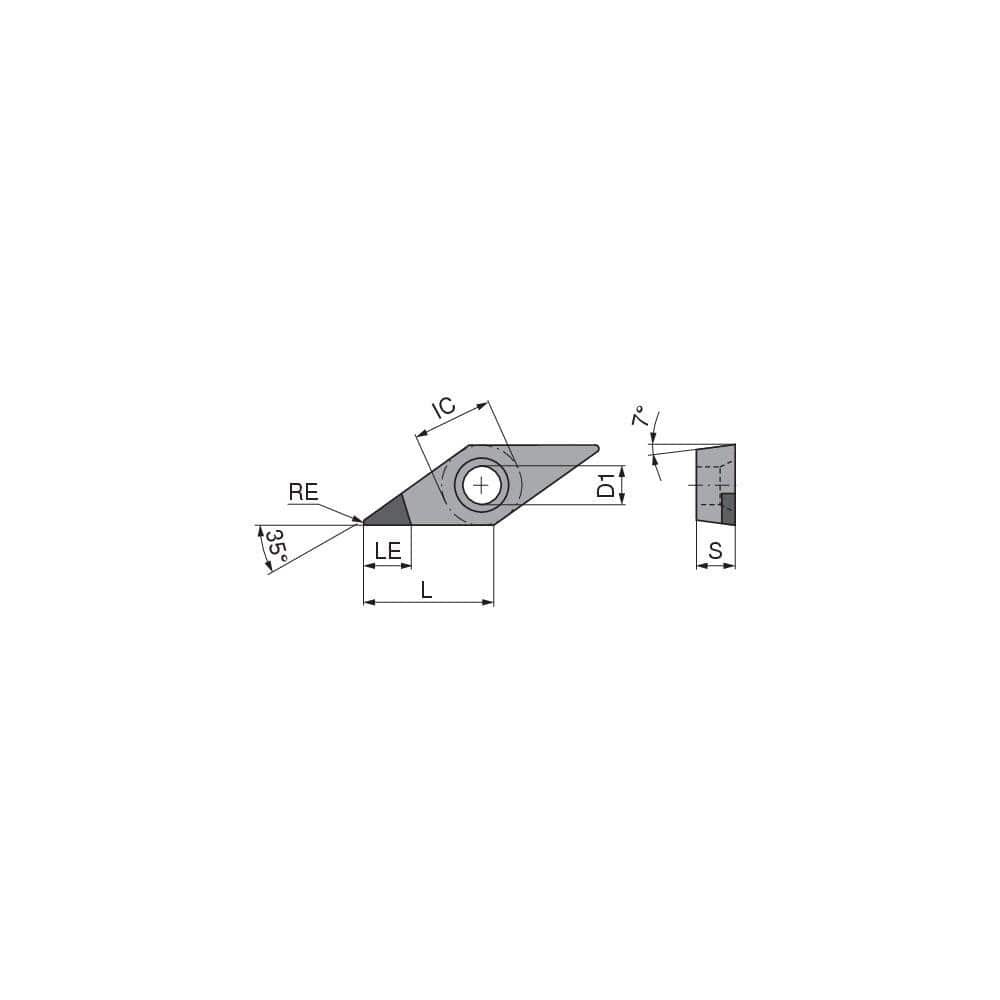

Turning Insert: VCGW333TN012EA4, Polycrystalline Cubic Boron Nitride TiN Finish, Neutral, 0.0472″ Corner Radius, 35.0 ° N/A Diamond, Series VCGW
Item #: 26283556
Brand: Ceratizit
Model #: 7116090900
Product Specifications
| Insert Style | VCGW |
| Insert Shape Code | V |
| Insert Size Code | 333 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH40U |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.1535 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | VCGW |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | VCGW333TN012E_A4CTBH40U |
| Iso Code | VCGW 160412TN-012E_A4 CTBH40U |
| Chip Breaker | W |
| Coating/Finish | TiN |
