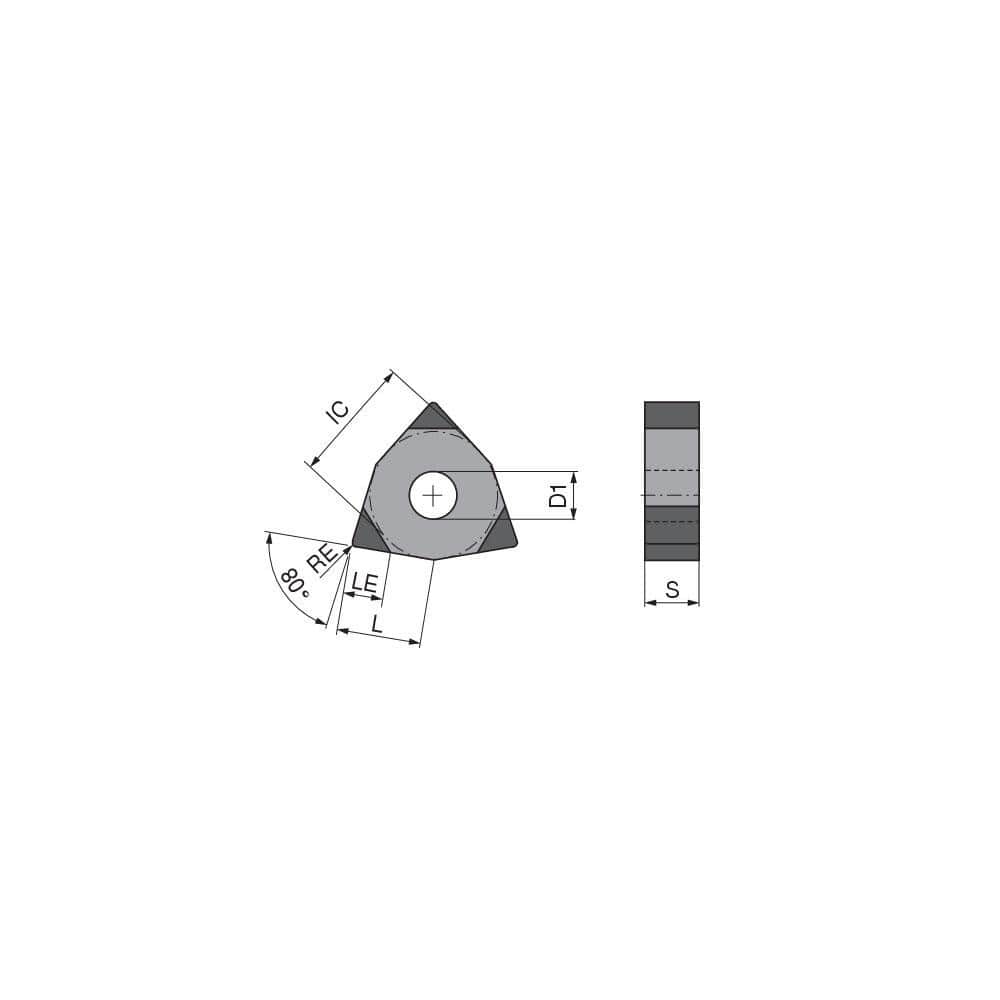

Turning Insert: WNGA433TN020FV2, Polycrystalline Cubic Boron Nitride Uncoated Finish, Neutral, 1/2″ Inscribed Circle, 0.0472″ Corner Radius, 80.0 ° N/A Trigon, Series WNGA
Item #: 26286005
Brand: Ceratizit
Model #: 7141500500
Product Specifications
| Insert Style | WNGA |
| Insert Shape Code | W |
| Insert Size Code | 433 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBS05U |
| Hole Diameter (Decimal Inch) | 0.2020 |
| Maximum Depth of Cut (Decimal Inch) | 0.0945 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | WNGA |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | WNGA433TN020F_V2CTBS05U |
| Iso Code | WNGA 080412TN-020F_V2 CTBS05U |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
