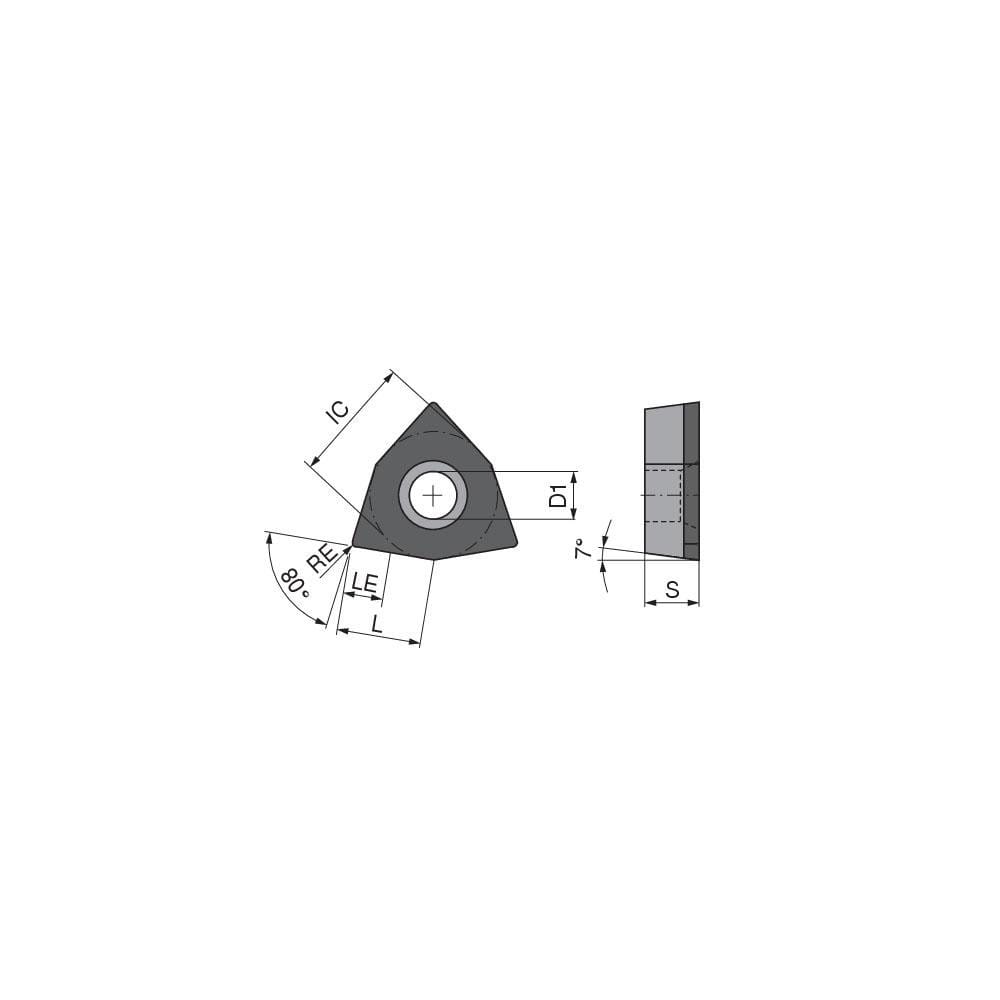

Turning Insert: PWCGW1215ENF3 CTBH15U, Polycrystalline Cubic Boron Nitride TiN Finish, Neutral, 0.0079″ Corner Radius, 80.0 ° N/A Trigon, Series WCGW
Item #: 26292557
Brand: Ceratizit
Model #: 7103700200
Product Specifications
| Insert Style | WCGW |
| Insert Shape Code | W |
| Insert Size Code | 1.21.5 |
| Insert Shape | Trigon |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH15U |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Maximum Depth of Cut (Decimal Inch) | 0.1063 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0622 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | WCGW |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | PWCGW1.21.5EN_F3CTBH15U |
| Iso Code | WCGW 020102EN_F3 CTBH15U |
| Chip Breaker | W |
| Coating/Finish | TiN |
