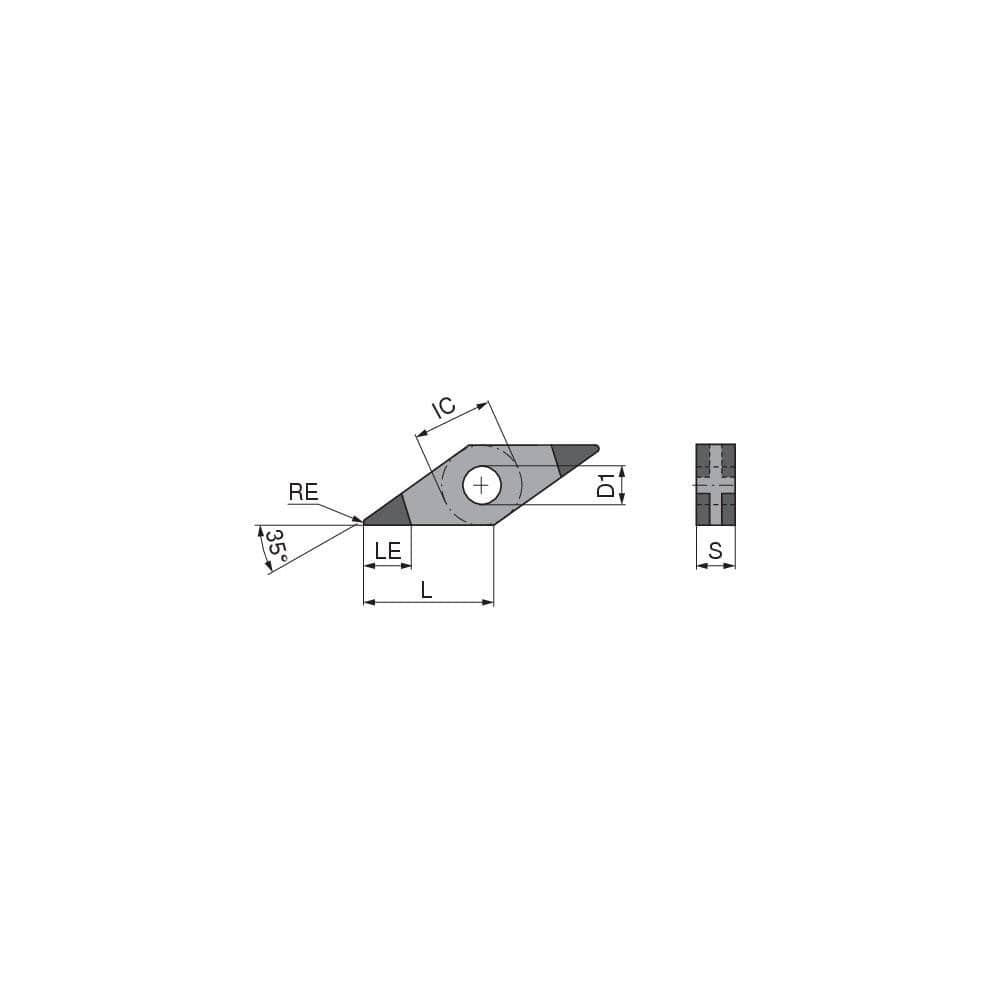

Turning Insert: VNGA331SN014GL3, Polycrystalline Cubic Boron Nitride TiN Finish, Neutral, 0.0157″ Corner Radius, 35.0 ° N/A Diamond, Series VNGA
Item #: 26292870
Brand: Ceratizit
Model #: 7141360400
Product Specifications
| Insert Style | VNGA |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH40C |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | VNGA |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | VNGA331SN014G_L3CTBH40C |
| Iso Code | VNGA 160404SN-014G_L3 CTBH40C |
| Chip Breaker | A |
| Coating/Finish | TiN |
