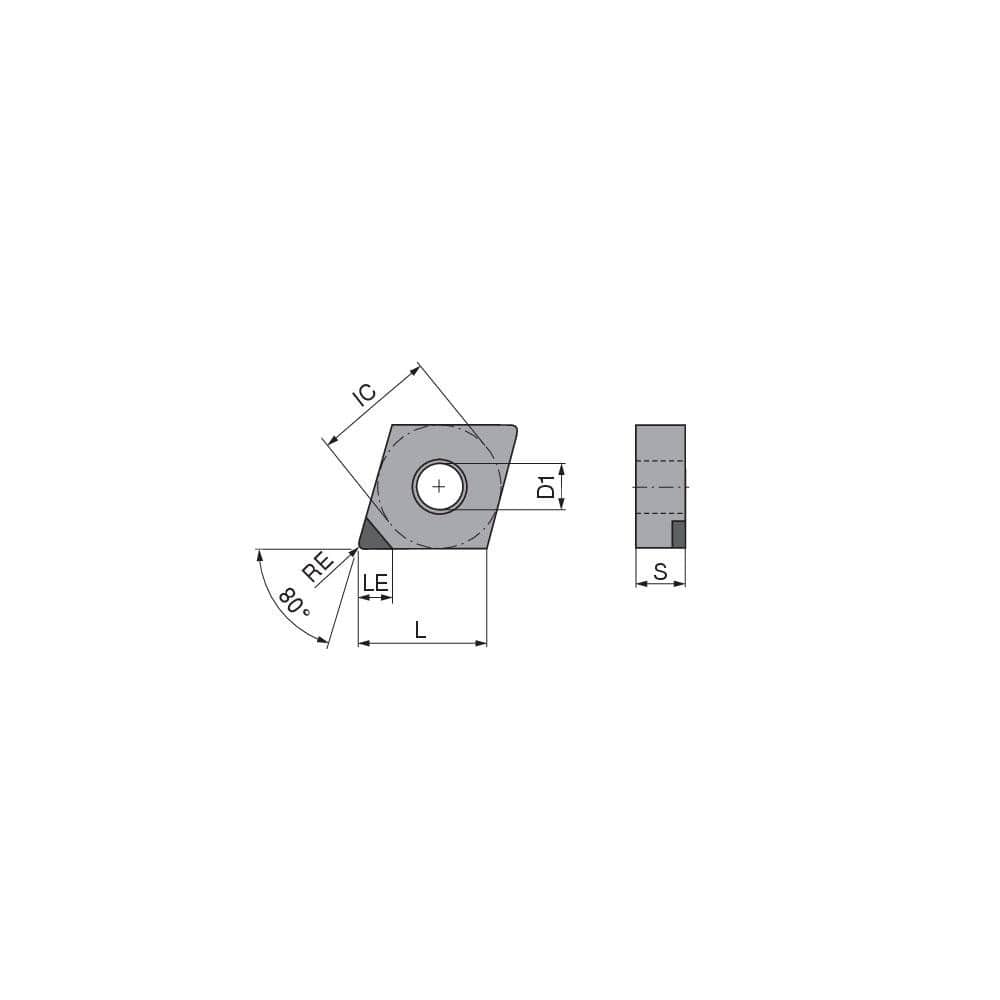

Turning Insert: CNGA433FN_A6 CTDPS30, Polycrystalline Diamond Uncoated Finish, Neutral, 1/2″ Inscribed Circle, 0.0472″ Corner Radius, 80.0 ° N/A Diamond, Series CNGA
Item #: 26295287
Brand: Ceratizit
Model #: 7112720201
Product Specifications
| Insert Style | CNGA |
| Insert Shape Code | C |
| Insert Size Code | 433 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | CTDPS30 |
| Hole Diameter (Decimal Inch) | 0.2020 |
| Maximum Depth of Cut (Decimal Inch) | 0.2244 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNGA |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal; Universal |
| Primary Workpiece Material Code | N; O |
| Ansi Code | CNGA433FN_A6CTDPS30 |
| Iso Code | CNGA 120412FN_A6 CTDPS30 |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
