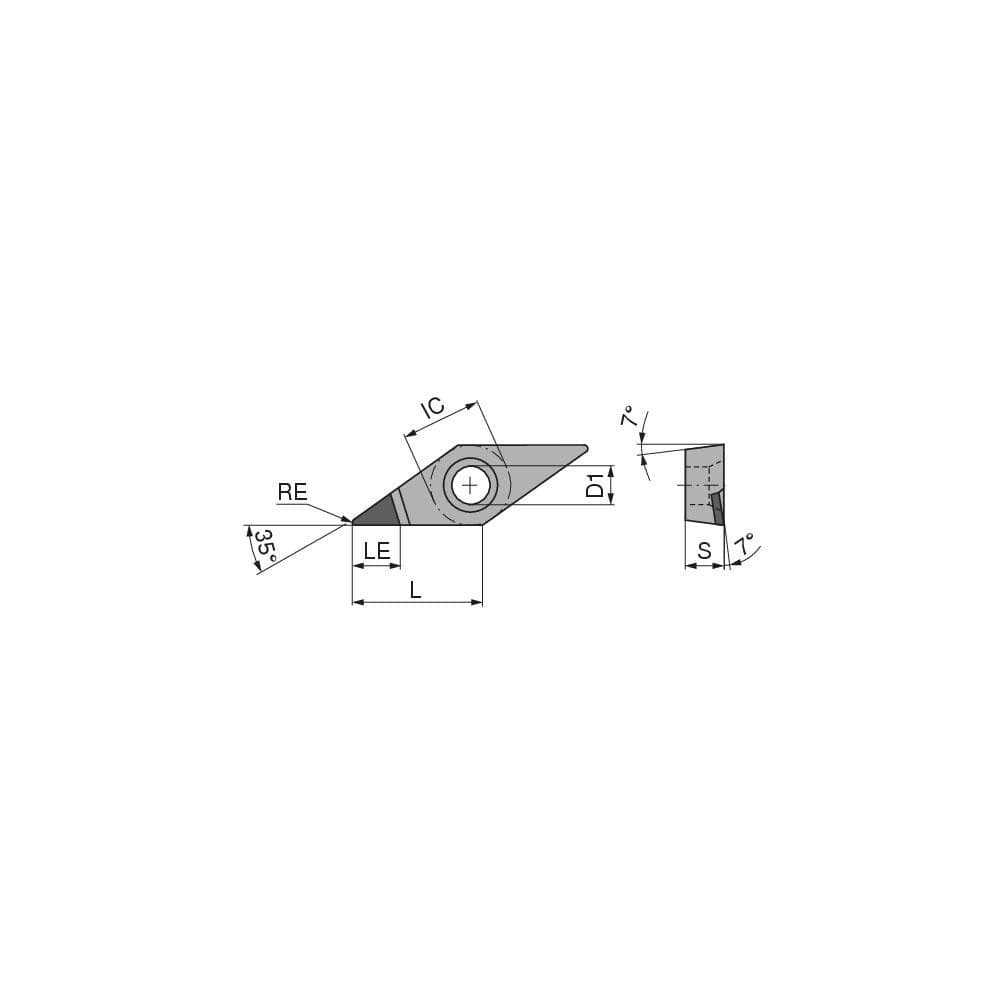

Turning Insert: VCGT221FN_A3 CTBH21U, Polycrystalline Cubic Boron Nitride TiCN Finish, Neutral, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 35.0 ° N/A Diamond, Series VCGT
Item #: 26296947
Brand: Ceratizit
Model #: 7142840000
Product Specifications
| Insert Style | VCGT |
| Insert Shape Code | V |
| Insert Size Code | 221 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CTBH21U |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Maximum Depth of Cut (Decimal Inch) | 0.1260 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | VCGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | VCGT221FN_A3CTBH21U |
| Iso Code | VCGT 110304FN_A3 CTBH21U |
| Chip Breaker | T |
| Coating/Finish | TiCN |
