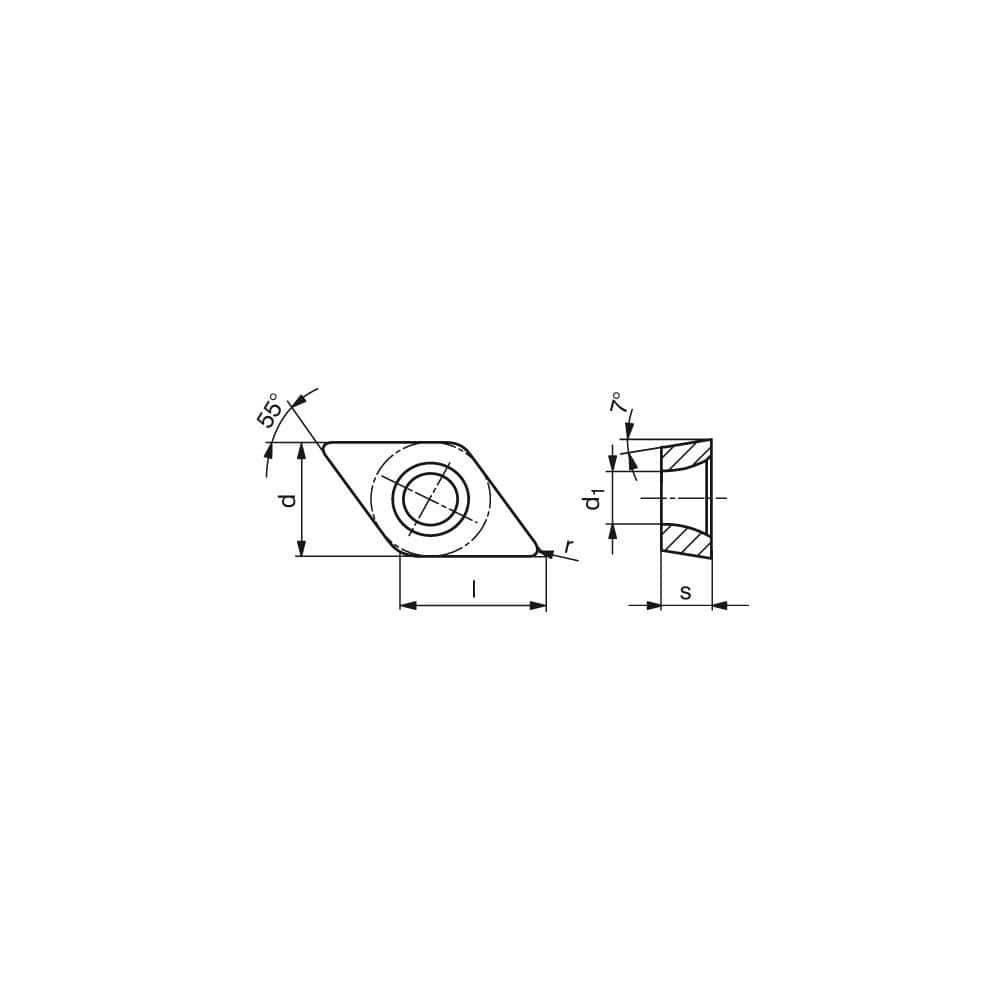

Turning Insert: DCMT21.51EN-29 AMZ, Solid Carbide TiAlN Finish, Neutral, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 55.0 ° N/A Diamond, Series DCMT
Item #: 26297572
Brand: Ceratizit
Model #: 7024640400
Product Specifications
| Insert Style | DCMT |
| Insert Shape Code | D |
| Insert Size Code | 21.51 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AMZ |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.3051 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | DCMT21.51EN29AMZ |
| Iso Code | DCMT 070204EN-29 AMZ |
| Chip Breaker | 29 |
| Coating/Finish | TiAlN |
