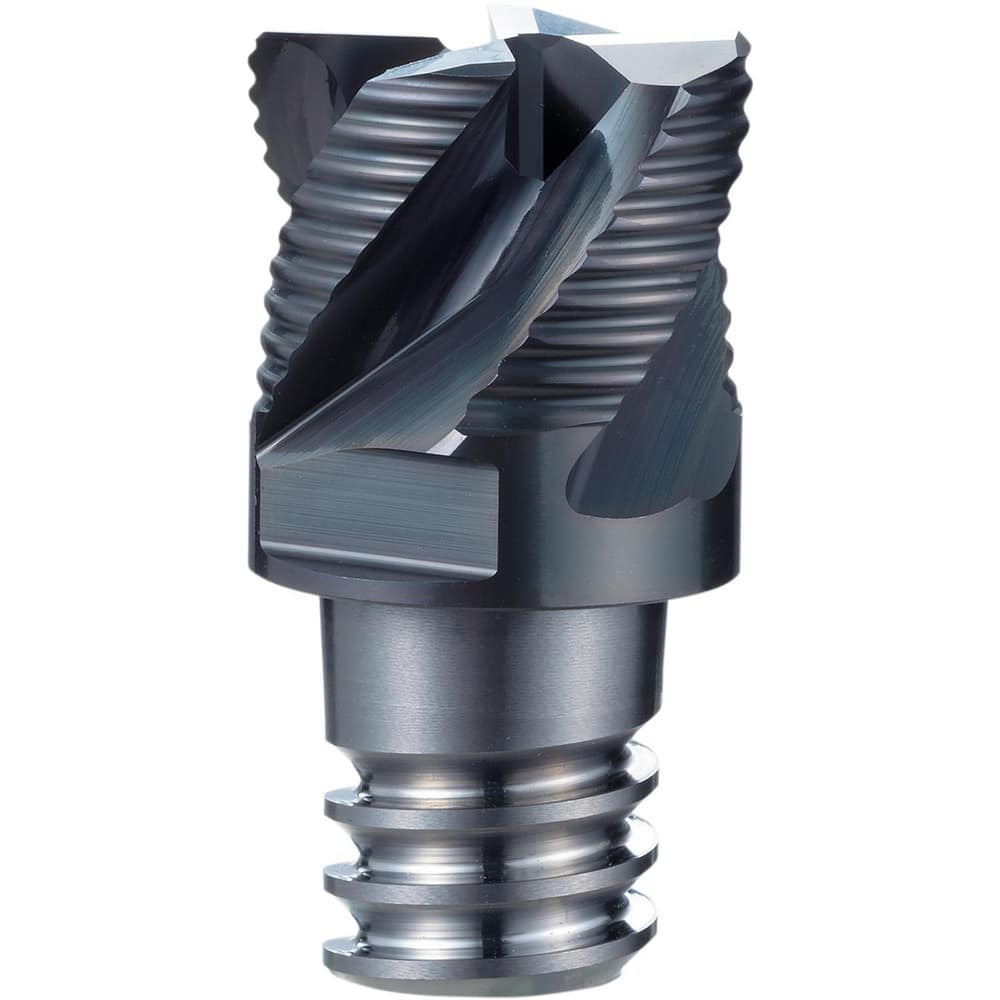

Square End Mill Heads; Mill Diameter (mm): 20.00; Mill Diameter (Decimal Inch): 0.7870; Number of Flutes: 4; Length of Cut (Decimal Inch): 0.5512; Length of Cut (mm): 14.0000; Connection Type: PXNH; Overall Length (mm): 21.5000; Material: Solid Carbide; F
Item #: 26303438
Brand: OSG
Model #: 7830463
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7870 |
| Number of Flutes | 4 |
| Length of Cut (Decimal Inch) | 0.5512 |
| Length of Cut (mm) | 14.0000 |
| Connection Type | PXNH |
| Overall Length (mm) | 21.5000 |
| Material | Solid Carbide |
| Finish/Coating | Cr |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Helix Angle | 40; 42 |
| Manufacturer Grade | XP3225 |
| Maximum Helix Angle | 42 |
| Minimum Helix Angle | 40 |
