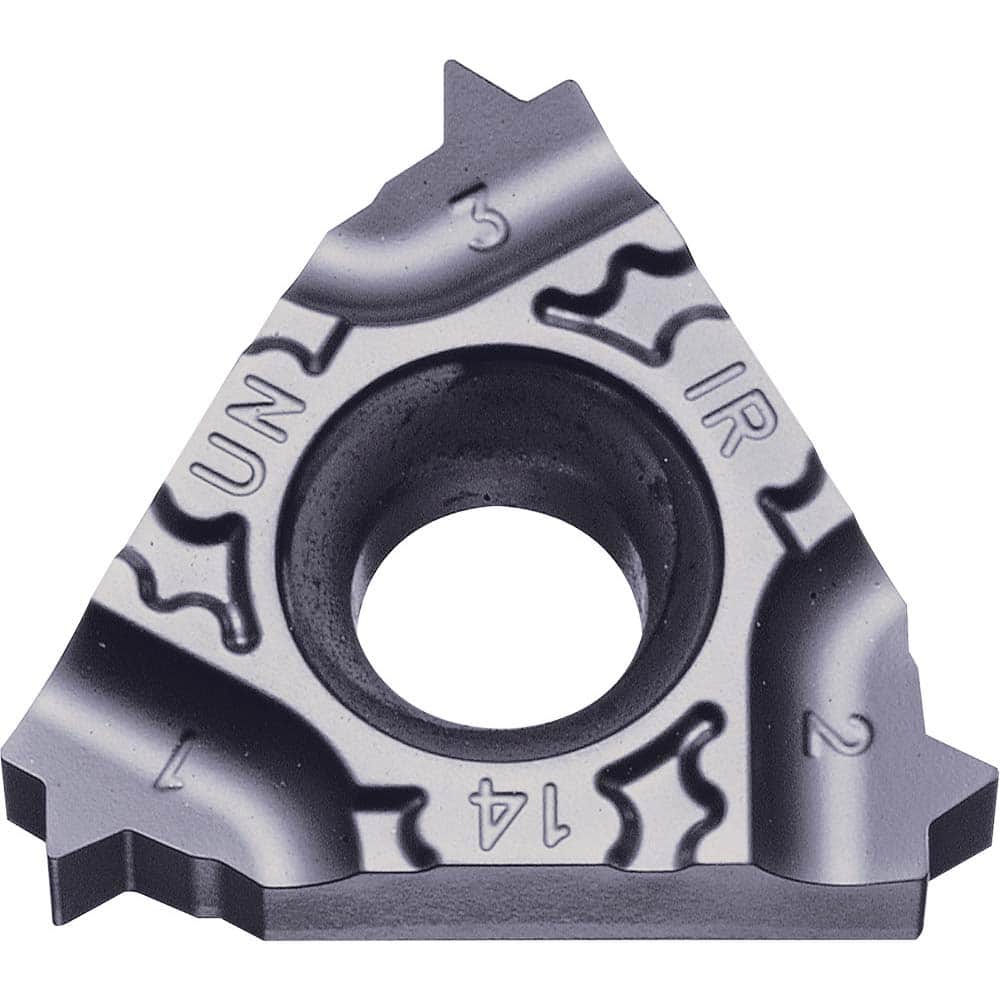

Kyocera - 16IR16UNTF PR1115 Carbide Laydown Threading Insert
Item #: 28457638
Brand: Kyocera
Model #: 8825971
Product Specifications
| Material | Carbide |
| Insert Style | 16IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | UN |
| Manufacturer's Grade | PR1115 |
| Threads Per Inch | 16 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (mm) | 3.6800 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 4.0000 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.10 |
| Chipbreaker | TF |
| Series | INTH |
| Insert Size | 16 |
| Applications | Internal Threading |
| Series Name | INTH |
