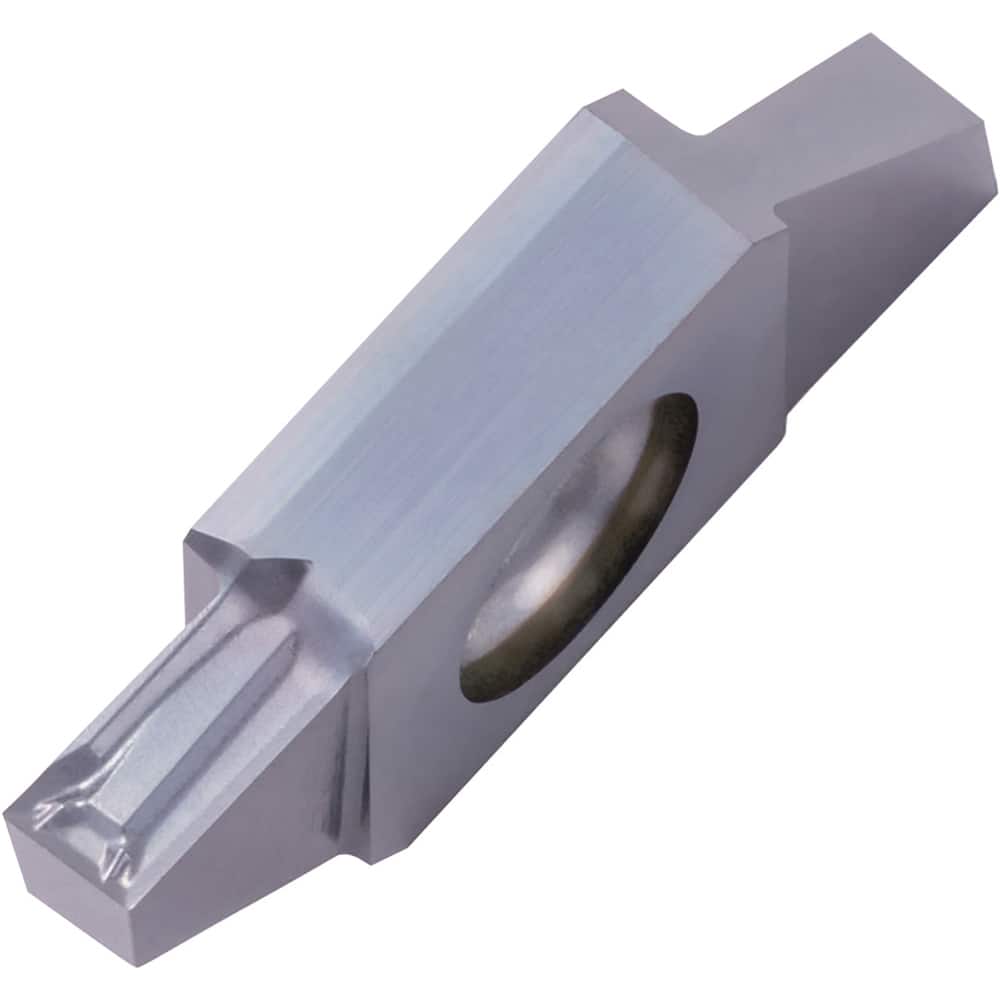

TKF16R300-GTP PR1725 Carbide Turning Insert Megacoat Nano Plus Finish, RH, 0.003″ Corner Radius, 0.374″ Thick, Irregular Shape, Series KTKF
Item #: 28459717
Brand: Kyocera
Model #: TLM40002
Product Specifications
| Insert Style | TKF |
| Insert Shape Code | T |
| Insert Size Code | 16 |
| Insert Shape | Irregular |
| Manufacturer Grade | PR1725 |
| Hole Diameter (Decimal Inch) | 0.1970 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.3740 |
| Corner Radius (Decimal Inch) | 0.0030 |
| Series | KTKF |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | P; M |
| Manufacturers Catalog Number | TKF16R300GTPPR1725 |
| Lead Angle | 0 |
| Width (Decimal Inch - 4 Decimals) | 0.1180 |
| Multi-Use Tool | No |
| Coating/Finish | Megacoat Nano Plus |
