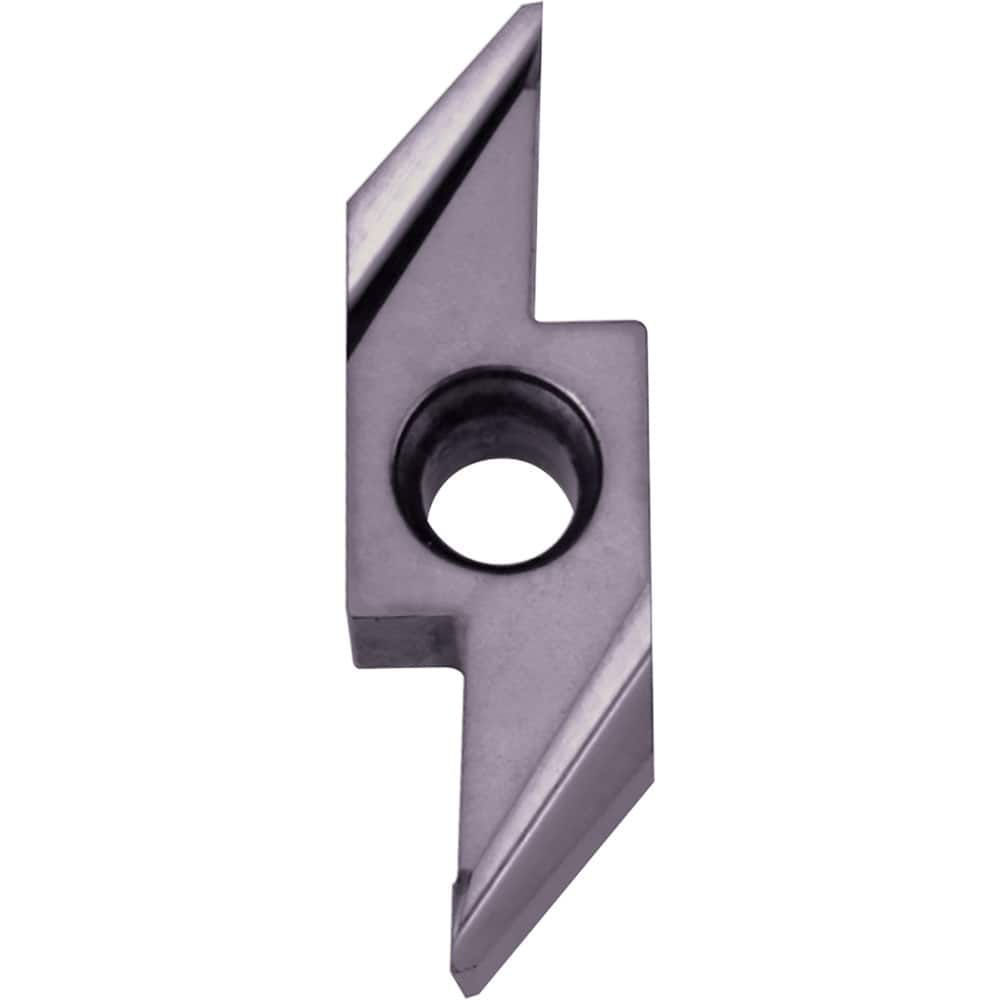

ABW23R5005M PR1225 Carbide Turning Insert Megacoat Finish, RH, 0.9213″ Long, 0.002″ Corner Radius, 5/32″ Thick, Irregular Shape

Item #: 28464394
Brand: Kyocera
Model #: TKE00123

Product Specifications

Insert Style ABW

Insert Shape Code A

Insert Size Code 235005

Insert Shape Irregular

Manufacturer Grade PR1225

Hole Diameter (Decimal Inch) 0.1181

Insert Holding Method Screw; Clamp

Insert Hand Right Hand

Insert Thickness (Inch) 5/32

Corner Radius (Decimal Inch) 0.0020

Relief Angle 15

Coating Process PVD

Length Range (Decimal Inch) 0.7000 - 10.0000

Rake Positive

Insert Length (Decimal Inch) 0.9213

Primary Workpiece Material M

Secondary Workpiece Material P

Manufacturers Catalog Number ABW23R5005MPR1225

Multi-Use Tool No

Coating/Finish Megacoat
