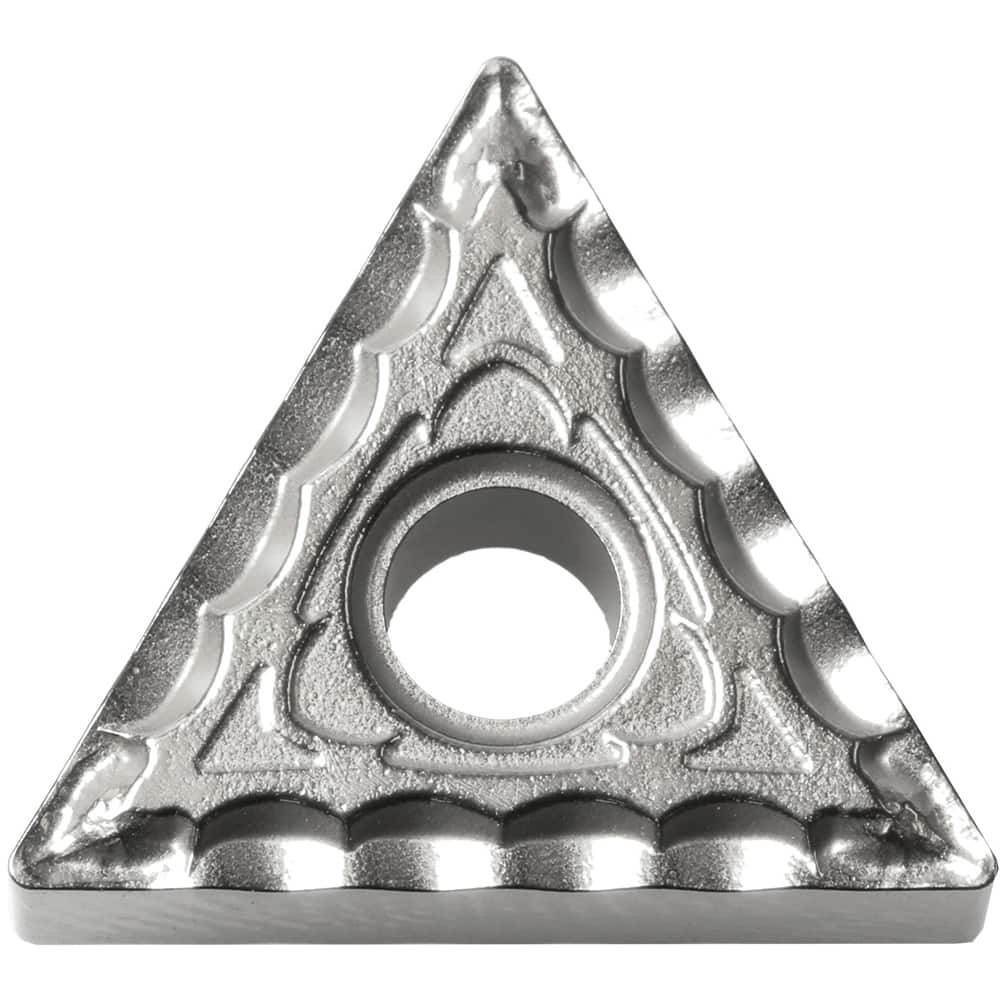

TNMG160408XQ TN620 Cermet Turning Insert Uncoated, Neutral, 3/8″ Inscribed Circle, 0.0315″ Corner Radius, 0.1874″ Thick, 60° Triangle, Series HYBCERM
Item #: 28469484
Brand: Kyocera
Model #: TSR06211
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 332 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Manufacturer Grade | TN620 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | HYBCERM |
| Coating Process | Uncoated |
| Rake | Negative |
| Primary Workpiece Material | P |
| Manufacturers Catalog Number | TNMG332XQTN620 |
| Chip Breaker | G |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Chamfering; Facing; Copying; Boring |
