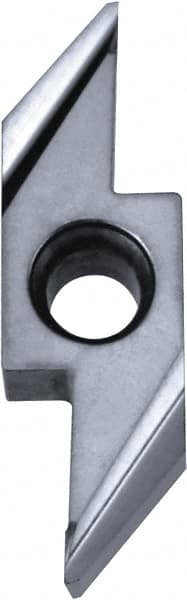

ABW23R5015M PR1725 Carbide Turning Insert Megacoat Nano Plus Finish, RH, 0.9213″ Long, 0.0591″ Corner Radius, 5/32″ Thick, Irregular Shape, Series PR17
Item #: 28469542
Brand: Kyocera
Model #: TLM40008
Product Specifications
| Insert Style | ABW |
| Insert Shape Code | A |
| Insert Size Code | 235015 |
| Insert Shape | Irregular |
| Manufacturer Grade | PR1725 |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Right Hand |
| Insert Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Relief Angle | 15 |
| Series | PR17 |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.9213 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | P; M |
| Manufacturers Catalog Number | ABW23R5015MPR1725 |
| Multi-Use Tool | No |
| Coating/Finish | Megacoat Nano Plus |
