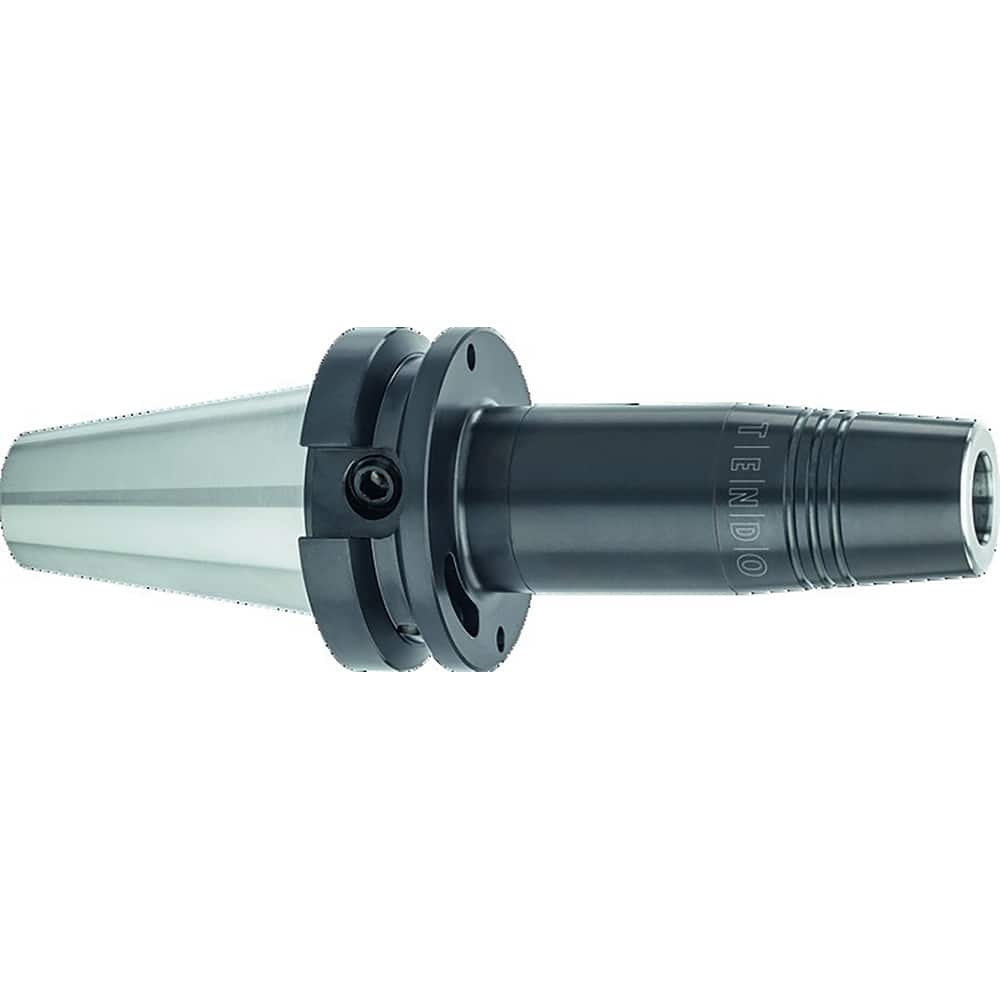

Schunk - 5/8" Hole Diam CAT40 Connection CAT40 Taper Shank Hydraulic Tool Holder/Chuck
Item #: 28473122
Brand: Schunk
Model #: 1407732
Product Specifications
| Shank Type | Taper Shank |
| Connection Size | CAT40 |
| Taper Size | CAT40 |
| Shank Diameter (Inch) | 5/8 |
| Hole Diameter (Inch) | .6250 |
| Hole Diameter (Decimal Inch) | 0.6250 |
| Hole Diameter (mm) | 15.8800 |
| Nose Diameter (mm) | 34.04 |
| Projection (mm) | 34.040 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 50.38 |
| TIR (mm) | 0.0030 |
| Overall Length (Inch) | 4.72 |
| Finish/Coating | BlackOxide |
| Extended Reach | Yes |
| End Type | Tapered |
