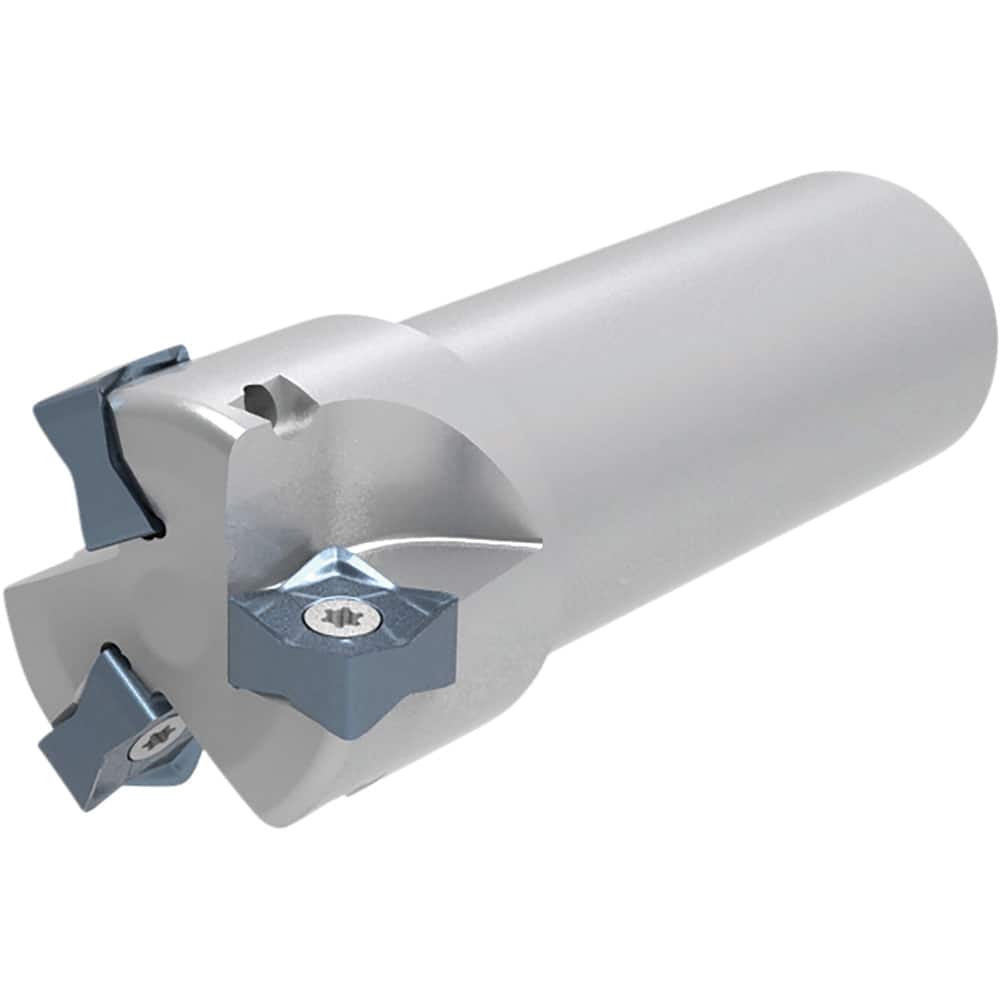

Kyocera - 88° Lead Angle, 40mm to 42mm Cut Diam, 32mm Shank Diam, Indexable & Chamfer End Mill
Item #: 28474740
Brand: Kyocera
Model #: 8858735
Product Specifications
| Cutting Diameter (mm) | 40.00 |
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 42.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 32.00 |
| Lead Angle | 88 |
| Overall Length (mm) | 110.00 |
| Insert Style | SNMU |
| Series | MFSN |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 5.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | MFSN |
| Number of Flutes | 3 |
| Head Length (mm) | 30.00 |
| Weldon Flat | No |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -13 |
| Shank Length (mm) | 80.00 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | SNMU130508EN-GM; SNMU130508EN-SM; SNMU130508EN-GH |
| ISO Number | MFSN88040R-S32-3T-G |
