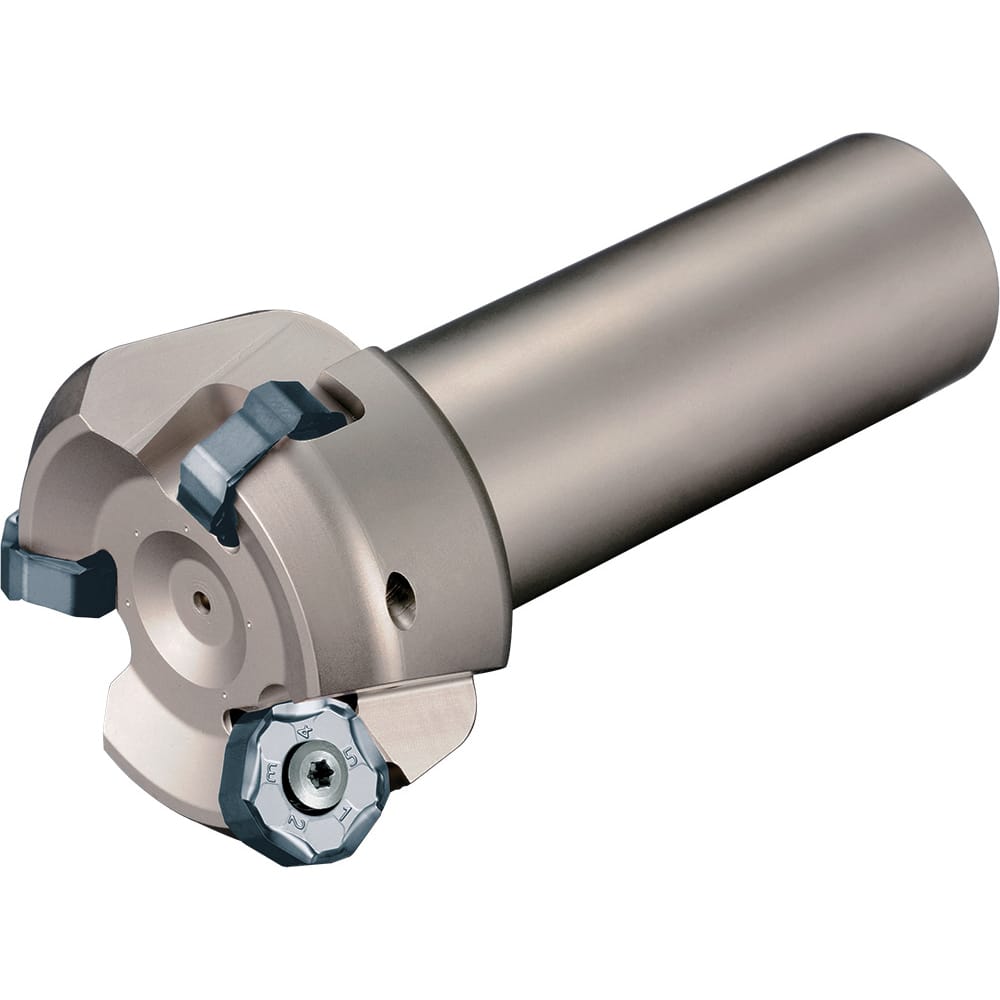

Kyocera - 45° Lead Angle, 3" to 84.07mm Cut Diam, 1-1/4" Shank Diam, Indexable & Chamfer End Mill
Item #: 28474757
Brand: Kyocera
Model #: 8609068
Product Specifications
| Cutting Diameter (Decimal Inch) | 3 |
| Minimum Cutting Diameter (Inch) | 3.0000 |
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (mm) | 84.07 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 3.6000 |
| Insert Style | PNMU; PNEU |
| Series | MFPN |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Toolholder Style | MFPN |
| Number of Flutes | 5 |
| Head Length (mm) | 30.00 |
| Weldon Flat | Yes |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -8 |
| Shank Length (Decimal Inch) | 2.4189 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | PNMU1205?; PNEU1205? |
| ISO Number | MFPN453000RW1255T |
