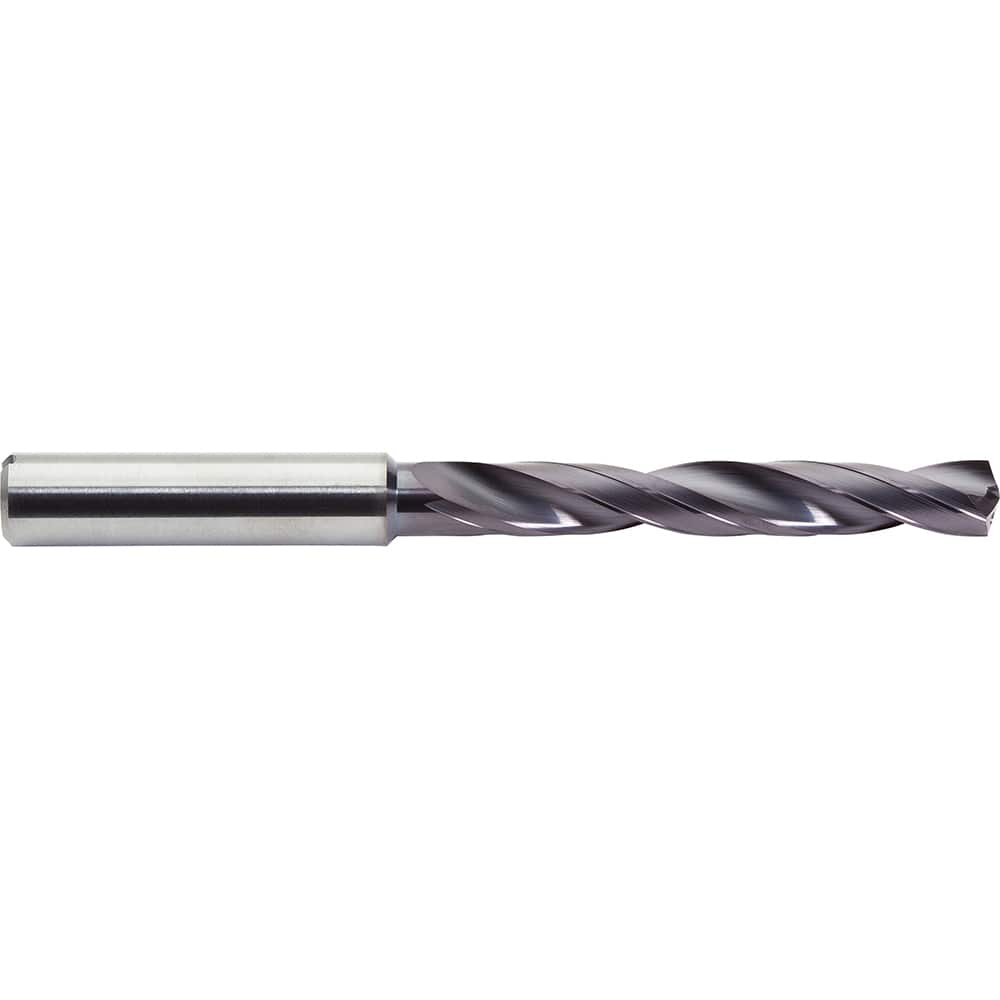

M.A. Ford - 9.5mm 142° Solid Carbide Jobber Drill
Item #: 28480416
Brand: M.A. Ford
Model #: CXDCR 0950AP
Product Specifications
| Drill Bit Size (mm) | 9.50 |
| Drill Bit Size (Decimal Inch) | 0.3740 |
| Drill Point Angle | 142 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | ALtima? Plus |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 61.00 |
| Flute Length (Decimal Inch) | 2.4016 |
| Overall Length (mm) | 153.0000 |
| Overall Length (Decimal Inch) | 4.05510 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Spiral Type | Right Hand |
| Specification Designation | DIN |
| Number of Flutes | 2 |
| Specification Number | DIN 6537 L |
| Series/List | CXDCR |
