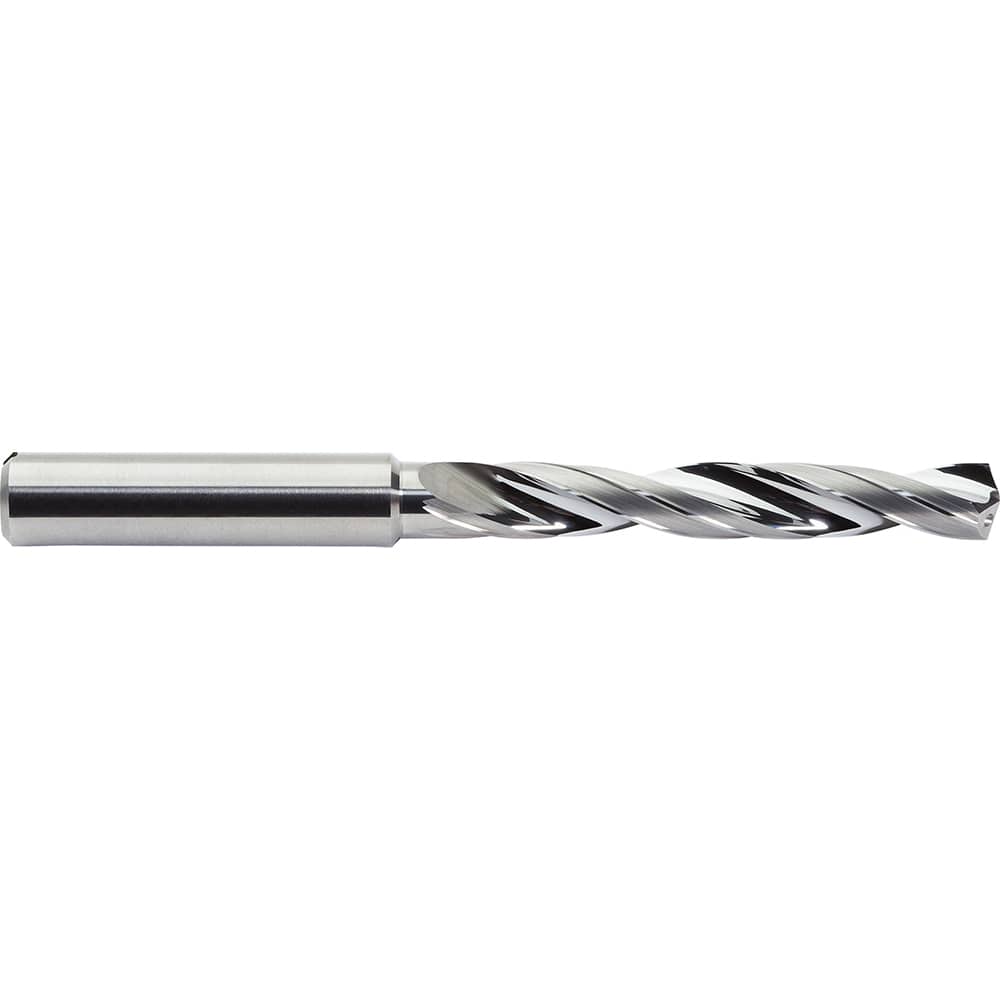

Jobber Length Drill Bit: 0.4688″ Dia, 142 °, Solid Carbide Bright/Uncoated, 4.65″ OAL, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 28481794
Brand: M.A. Ford?
Model #: CDACR4688
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4688 |
| Drill Bit Size (Inch) | 15/32 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Uncoated |
| Drill Point Angle (Degrees) | 142 |
| Spiral Type | Right Hand |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 153.00 |
| Overall Length (Decimal Inch) | 4.6500 |
| Flute Length (Decimal Inch) | 2.7950 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 12.00 |
| Specification Number | DIN 6537L |
| Double Margin | Yes |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Specification Designation | DIN |
