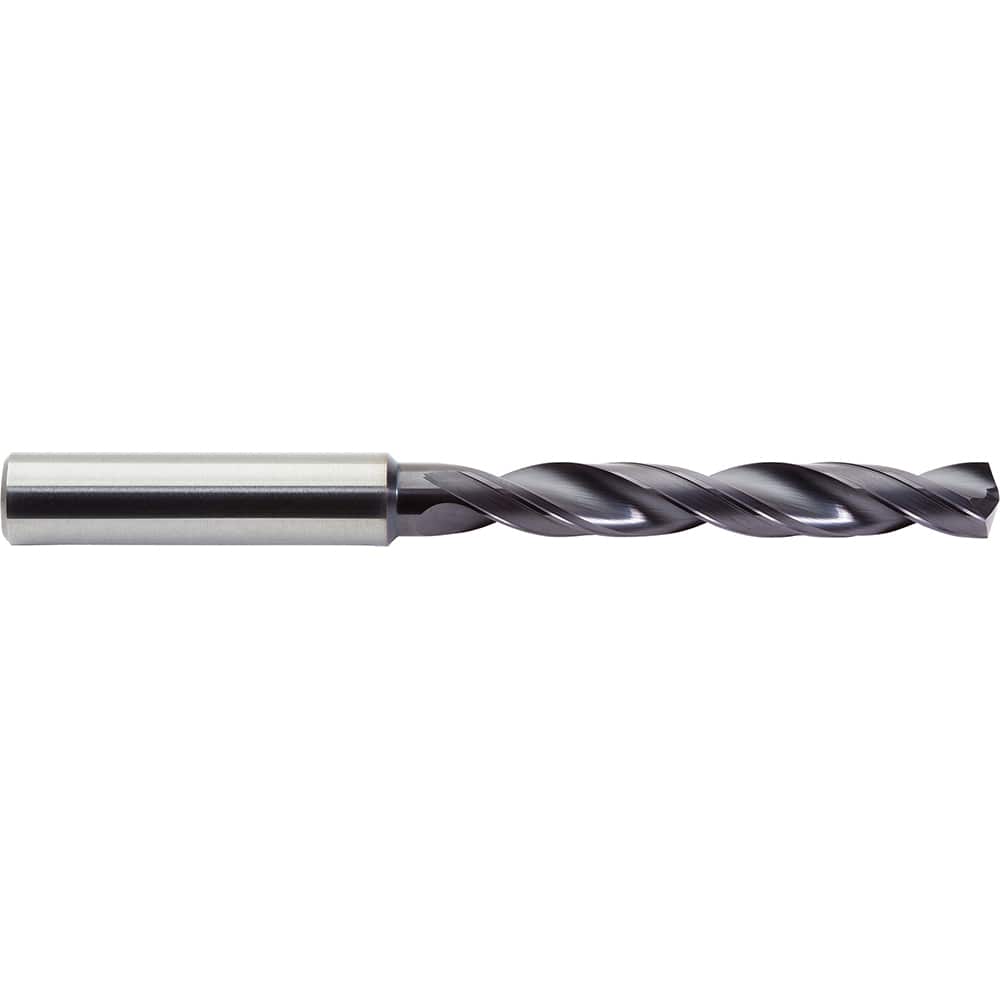

M.A. Ford - 12.1mm 142° Solid Carbide Jobber Drill
Item #: 28481893
Brand: M.A. Ford
Model #: CXDSR 1210AP
Product Specifications
| Drill Bit Size (mm) | 12.10 |
| Drill Bit Size (Decimal Inch) | 0.4764 |
| Drill Point Angle | 142 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | ALtima? Plus |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 77.00 |
| Flute Length (Decimal Inch) | 3.0315 |
| Overall Length (mm) | 153.0000 |
| Overall Length (Decimal Inch) | 4.88190 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 14.0000 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Spiral Type | Right Hand |
| Specification Designation | DIN |
| Number of Flutes | 2 |
| Specification Number | DIN 6537 L |
| Series/List | CXDSR |
