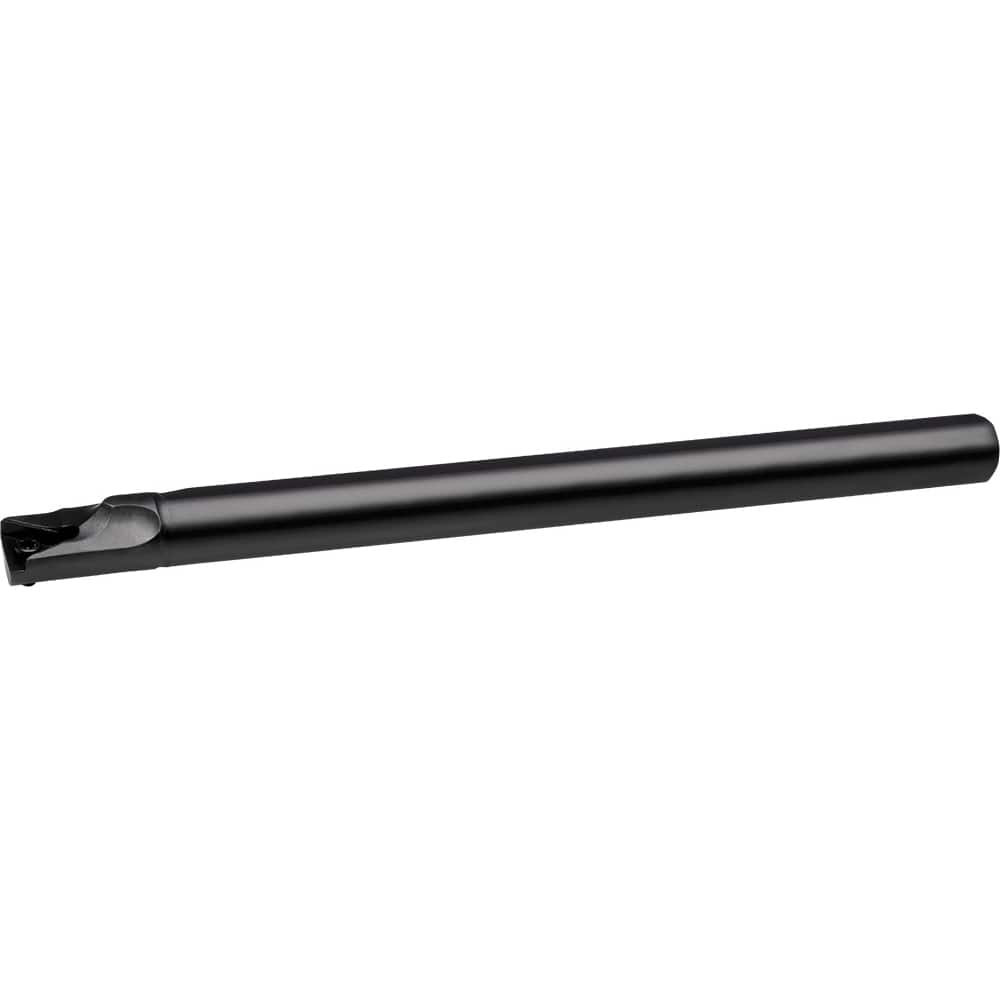

Kyocera - 10mm Min Bore, 16mm Max Depth, Right Hand S...STLC Indexable Boring Bar
Item #: 28484731
Brand: Kyocera
Model #: 8829082
Product Specifications
| Toolholder Style | S...STLC |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 10.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 16.00 |
| Overall Length (mm) | 120.0000 |
| Shank Diameter (mm) | 8.0000 |
| Insert Compatibility | TCMX1815?; TCMT1815? |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 5.00 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 7/32 |
| Rake Angle | -14 (Radial);0 (Axial) |
| Toolholder Material | Steel |
