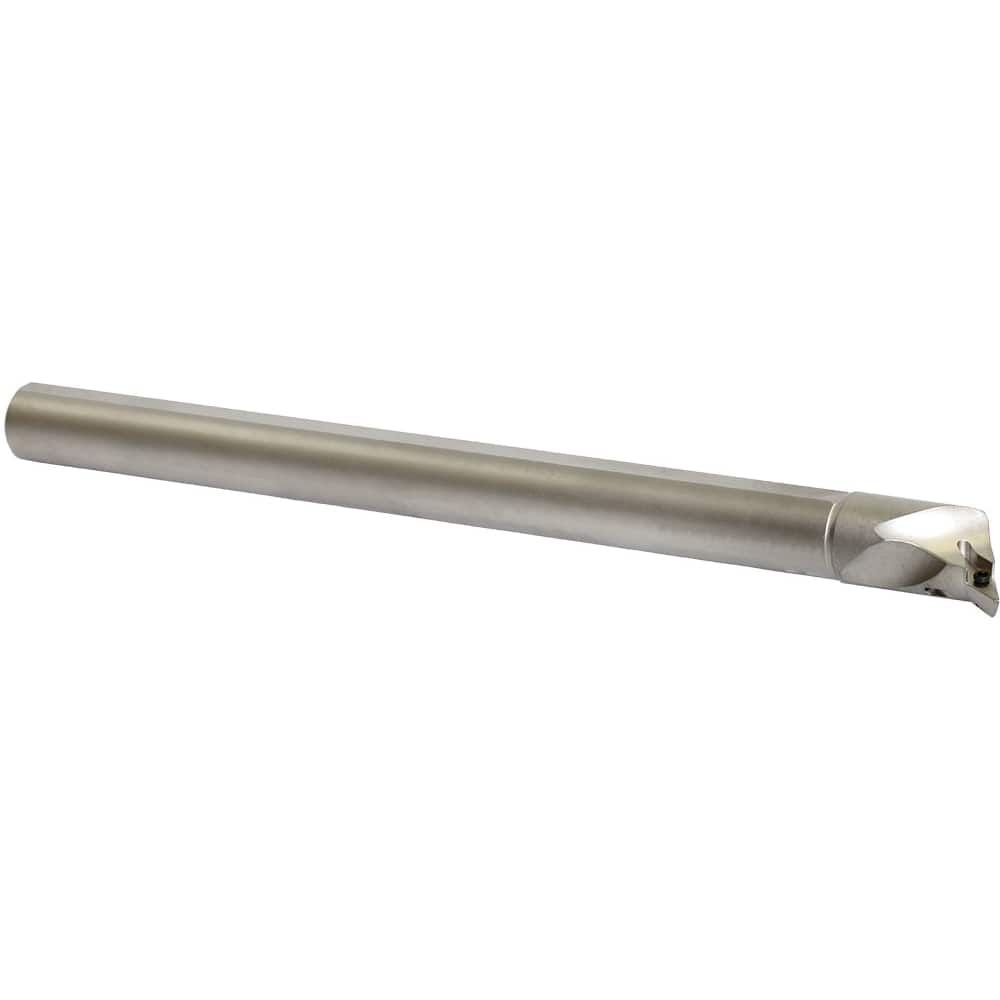

Kyocera - 31.5mm Min Bore, 51mm Max Depth, Left Hand A...SVPB Indexable Boring Bar
Item #: 28484871
Brand: Kyocera
Model #: 8607656
Product Specifications
| Toolholder Style | A...SVPB |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 31.500 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 51.00 |
| Overall Length (Inch) | 12 |
| Shank Diameter (Inch) | 1 |
| Insert Compatibility | VBMT33?; VBGT33?; VBGW33... VCGT33? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; Undercutting |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 117.5 |
| Center to Cutting Edge (mm) | 18.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -5 (Axial);-13 (Radial) |
| Coolant Hole Diameter (mm) | 5.00 |
| Toolholder Material | Steel |
