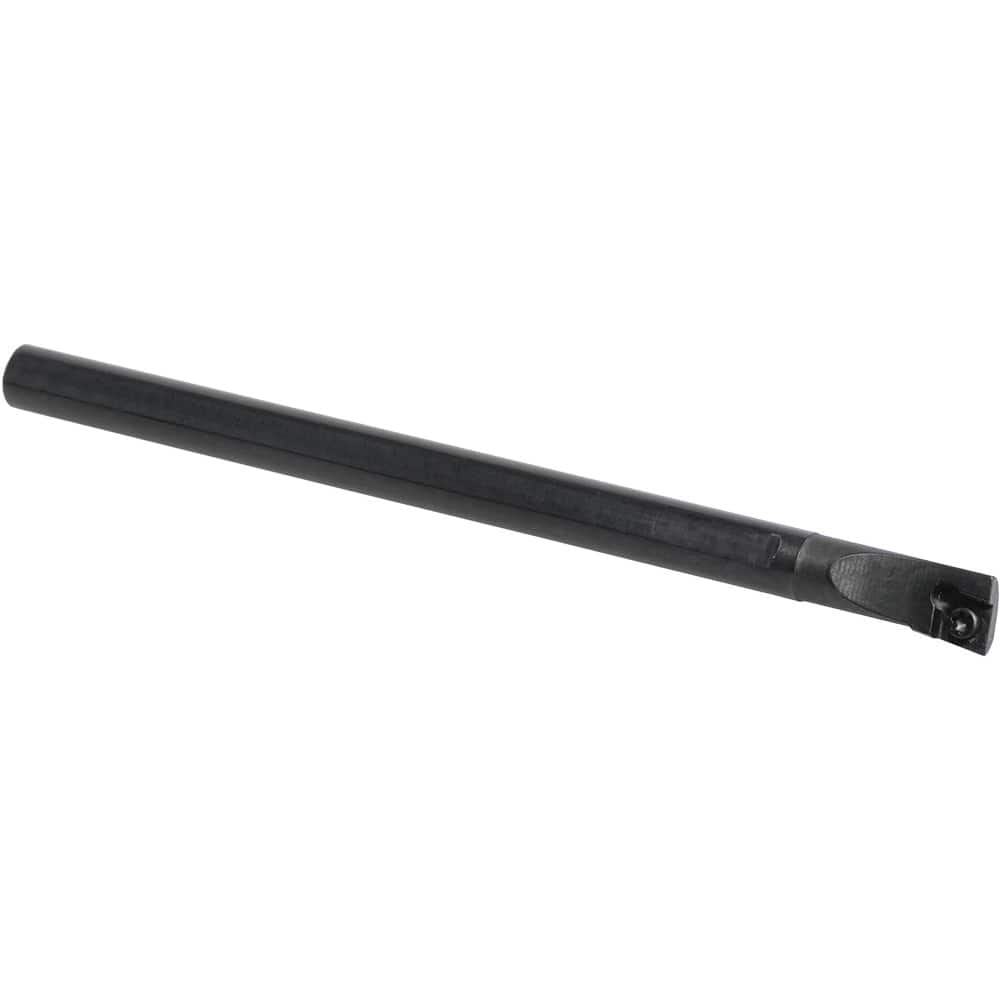

Kyocera - 1.338" Min Bore, 1-3/4" Max Depth, Left Hand S...SCLP Indexable Boring Bar
Item #: 28484905
Brand: Kyocera
Model #: 8604120
Product Specifications
| Toolholder Style | S...SCLP |
| Series | GPBB |
| Minimum Bore Diameter (Decimal Inch) | 1.3380 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Inch) | 1-3/4 |
| Overall Length (Inch) | 12 |
| Shank Diameter (Inch) | 1 |
| Insert Compatibility | CPMT32?; CPMH32?; CPMB32?; CPGB32? |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 17.00 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -15 (Radial);0 (Axial) |
| Toolholder Material | Steel |
