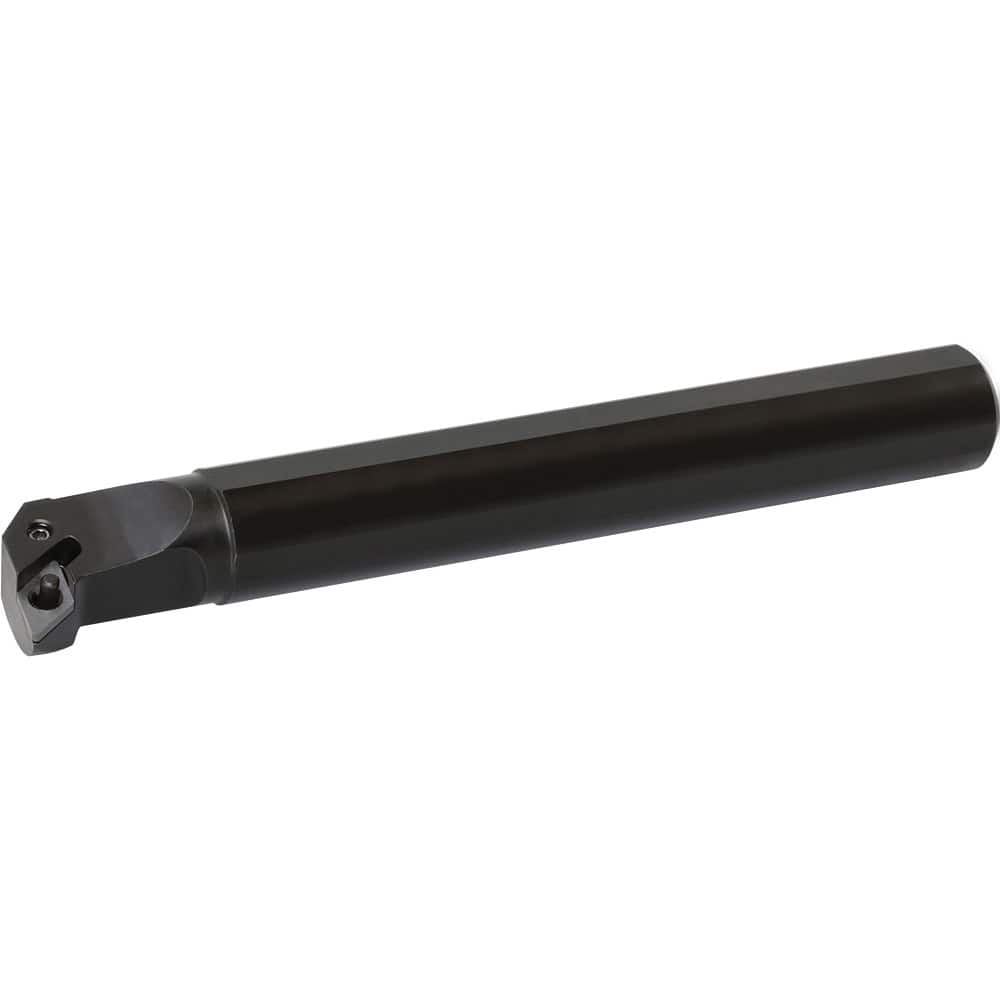

Kyocera - 44mm Min Bore, 50mm Max Depth, Right Hand S...PDQN15 Indexable Boring Bar
Item #: 28484921
Brand: Kyocera
Model #: 8837730
Product Specifications
| Toolholder Style | S...PDQN15 |
| Series | GPBB |
| Minimum Bore Diameter (mm) | 44.000 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Overall Length (mm) | 250.0000 |
| Shank Diameter (mm) | 32.0000 |
| Insert Compatibility | DNMG43?; DNMX43?; DNGG43?; DNGA43?; DNMM43? |
| Through Coolant | No |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Lever Lock; Lock Pin |
| Rake | Negative |
| Lead Angle | 107.5 |
| Center to Cutting Edge (mm) | 22.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | -6 (Axial);-13 (Radial) |
| Toolholder Material | Steel |
