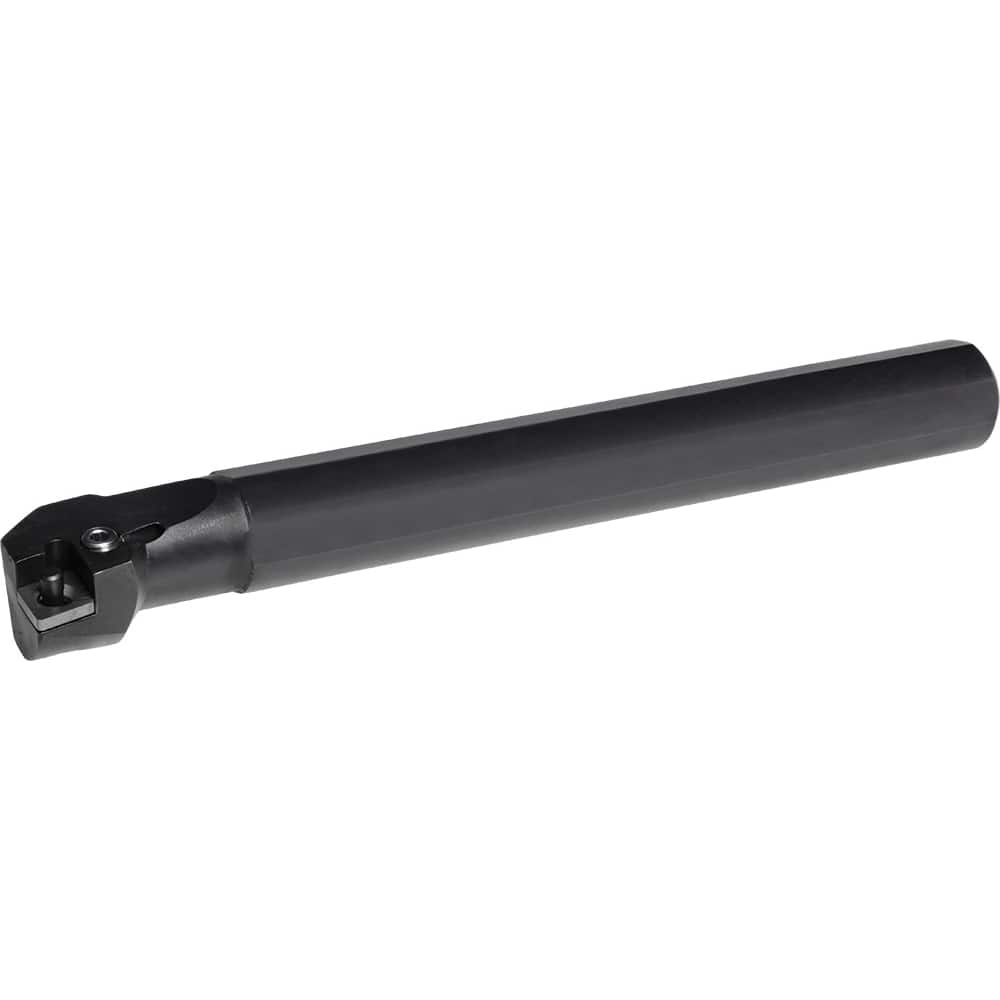

Kyocera - 26.92mm Min Bore, 37mm Max Depth, Right Hand A...PCLN Indexable Boring Bar
Item #: 28484996
Brand: Kyocera
Model #: 8608721
Product Specifications
| Toolholder Style | A...PCLN |
| Series | GPBB |
| Minimum Bore Diameter (mm) | 26.920 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 37.00 |
| Overall Length (Inch) | 7 |
| Shank Diameter (Inch) | 0.75 |
| Insert Compatibility | CNMG33?; CNGG33? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Lever Lock; Lock Pin |
| Rake | Negative |
| Lead Angle | 95 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | -6 (Axial);-17 (Radial) |
| Toolholder Material | Steel |
