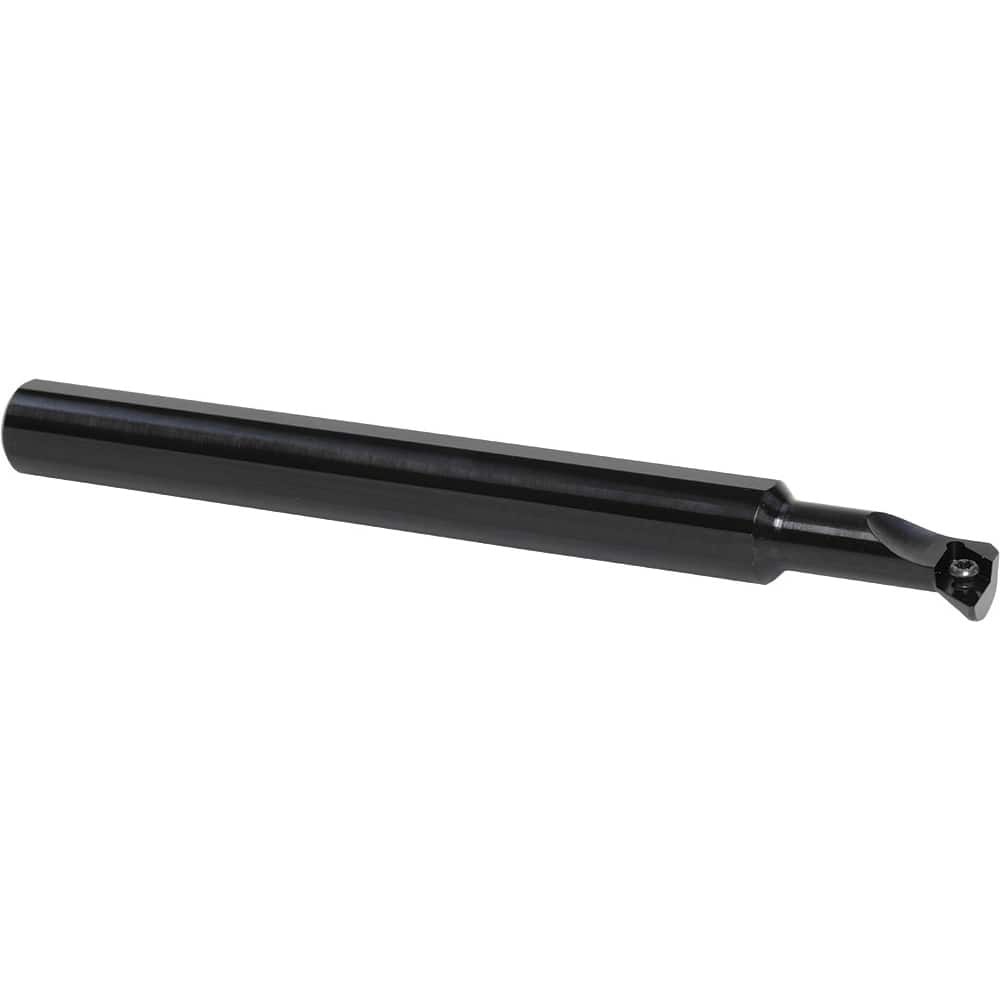

Kyocera - 0.564" Min Bore, 1-1/8" Max Depth, Left Hand S...SDUC Indexable Boring Bar
Item #: 28485001
Brand: Kyocera
Model #: 8604097
Product Specifications
| Toolholder Style | S...SDUC |
| Series | GPBB |
| Minimum Bore Diameter (Decimal Inch) | 0.5640 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Inch) | 1-1/8 |
| Overall Length (Inch) | 7 |
| Shank Diameter (Inch) | 0.625 |
| Insert Compatibility | DCGT215?; DCMX215?; DCMT215?; DCET215?; DCMW215? |
| Through Coolant | No |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 107.5 |
| Center to Cutting Edge (mm) | 8.79 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 3 (Axial);-5 (Radial) |
| Toolholder Material | Steel |
