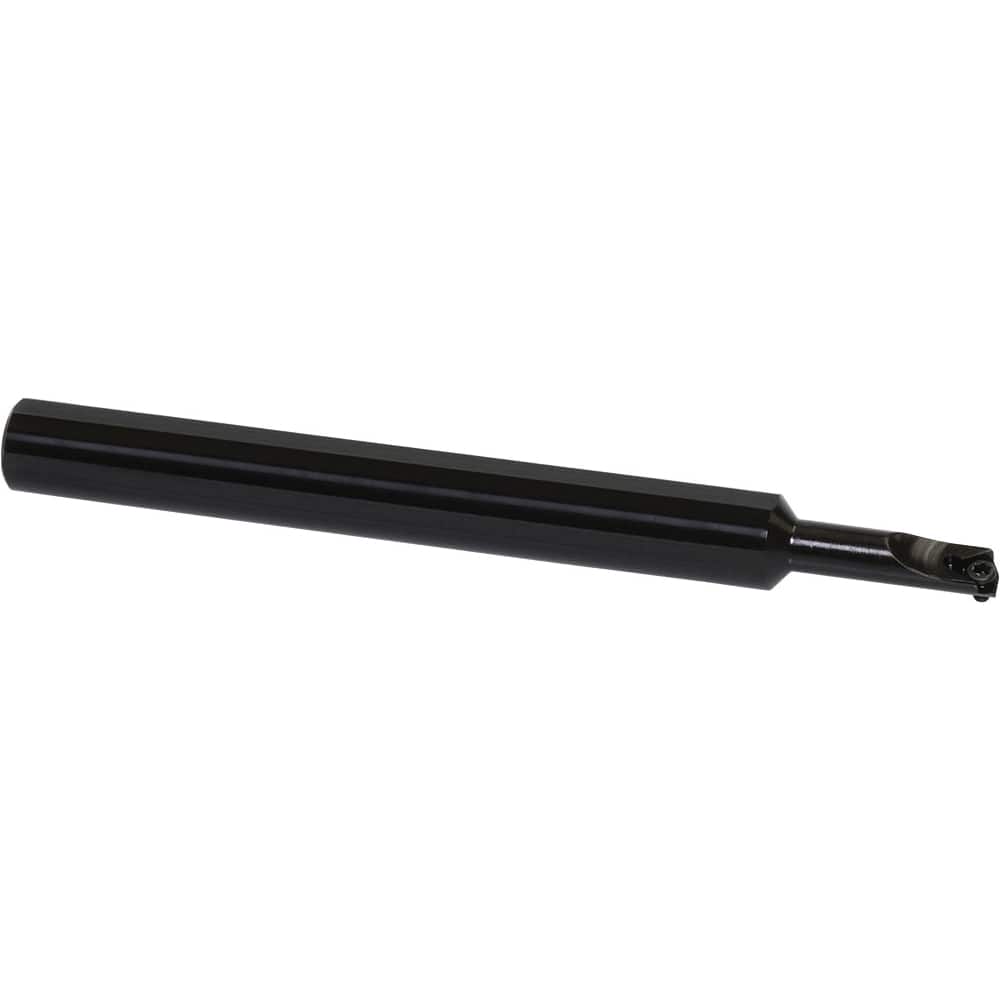

Kyocera - 6.1mm Min Bore, 20.96mm Max Depth, Left Hand S...SWUB Indexable Boring Bar
Item #: 28485027
Brand: Kyocera
Model #: 8604074
Product Specifications
| Toolholder Style | S...SWUB |
| Series | GPBB |
| Minimum Bore Diameter (mm) | 6.100 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 20.96 |
| Overall Length (Inch) | 4 |
| Shank Diameter (Inch) | 0.375 |
| Insert Compatibility | WBMT121?; WBGT121?; WBGW121? |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 2.92 |
| Insert Thickness (Inch) | 1/16 |
| Insert Inscribed Circle (Inch) | 5/32 |
| Rake Angle | -15 (Radial);0 (Axial) |
| Toolholder Material | Steel |
