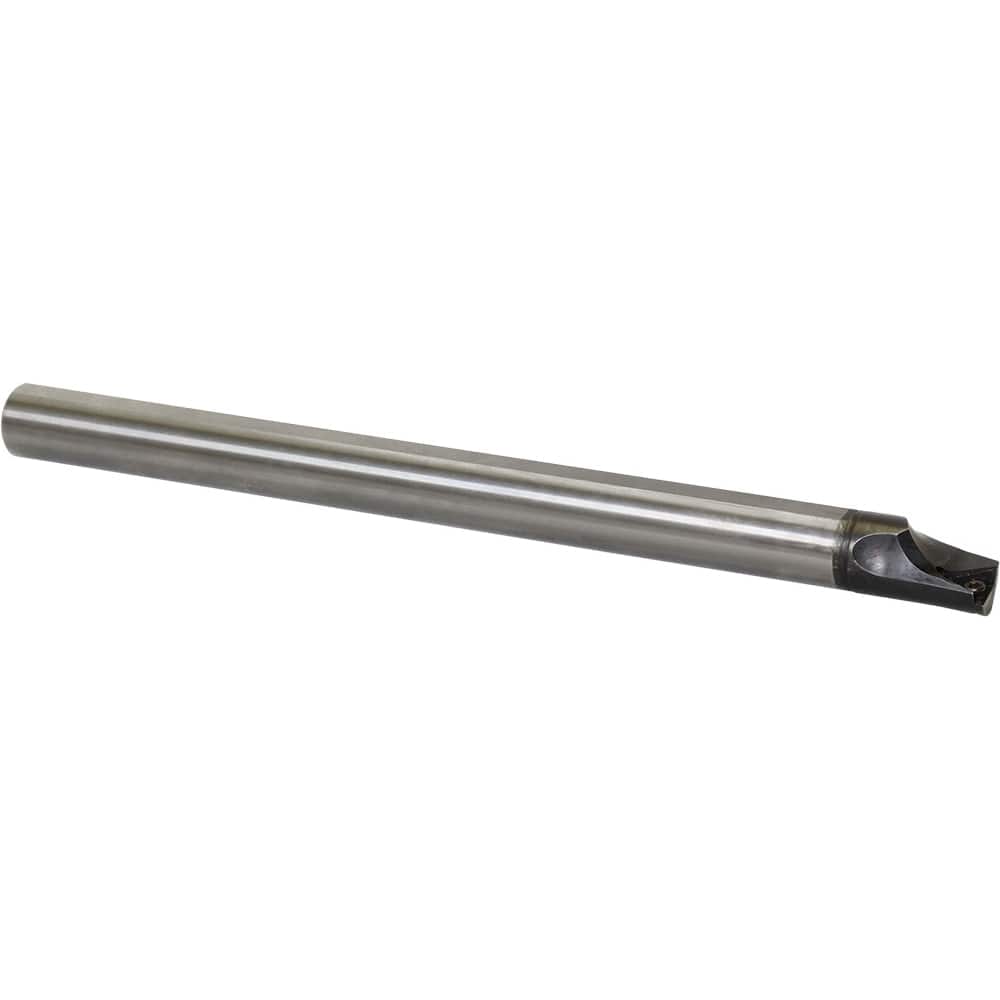

Kyocera - 22mm Min Bore, 32mm Max Depth, Left Hand E...STLP Indexable Boring Bar
Item #: 28485068
Brand: Kyocera
Model #: 8829248
Product Specifications
| Toolholder Style | E...STLP |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 22.000 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 32.00 |
| Overall Length (mm) | 250.0000 |
| Shank Diameter (mm) | 20.0000 |
| Insert Compatibility | TPMX22?; TPMT22?; TPGH22?; TPET22?; TPGB22...; TPMH22? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 11.20 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -2 (Radial);5 (Axial) |
| Coolant Hole Diameter (mm) | 6.00 |
| Toolholder Material | Steel; Carbide |
